Technical Specifications Table
| Parameter | Specification | Unit | Notes / Remarks |
|---|---|---|---|

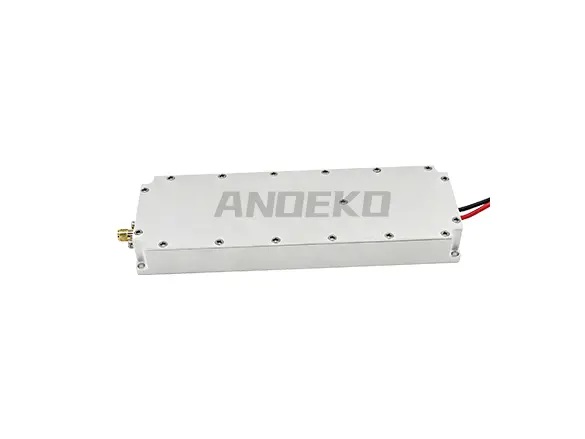

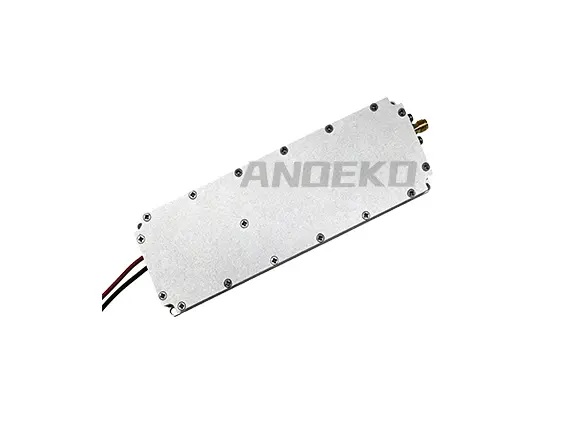

| Product Type | RF Power Amplifier Module with Built-in Signal Source | - | For anti-drone / jamming applications |
| Frequency Range | 250–400 | MHz | Integrated signal source for direct use |
| Max Output Power | 50 | dBm | Continuous wave output, ≤7.3A at full power |
| Working Efficiency | ≥50 | % | Typical value |
| Output VSWR | ≤2 | - | Low reflection, stable operation |
| Operating Voltage | 24–32 (Typical: 28) | VDC | Built-in voltage regulator module |
| Power Supply Requirement | ≥10 | A | For stable full-power operation |
| Working Temperature | -40 ~ +55 | °C | Wide industrial-grade range |
| Power Stability | ±1.5 | dB | Over -20°C ~ +75°C temperature range |
| RF Output Connector | N-Type Female | - | Standard high-power interface |
| Dimensions (Excluding Connector) | 156.5 × 64.7 × 24.5 | mm | Compact aluminum housing |
| Mounting Hole Spacing | 151.5 × 59.4 | mm | For M3×10 steel screws |

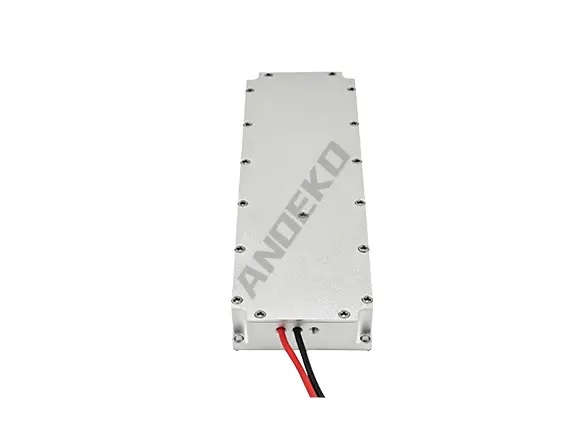

| Power Interface | M4 Feedthrough Capacitor / Red & Black Wire | - | Multiple connection options |
| Control & Alarm Interface | CON2×4 (8-Pin Connector) | - | 1-4 NC; 5 GND; 6 Temp Alarm (Normal High); 7 VSWR Alarm (Normal High); 8 Enable (High=On, Low=Off) |
