Power Amplifer Module

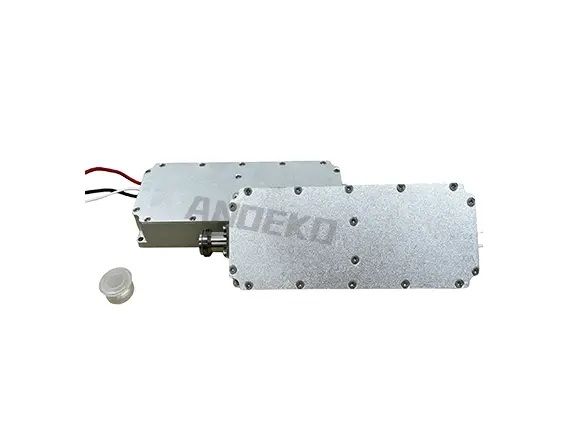

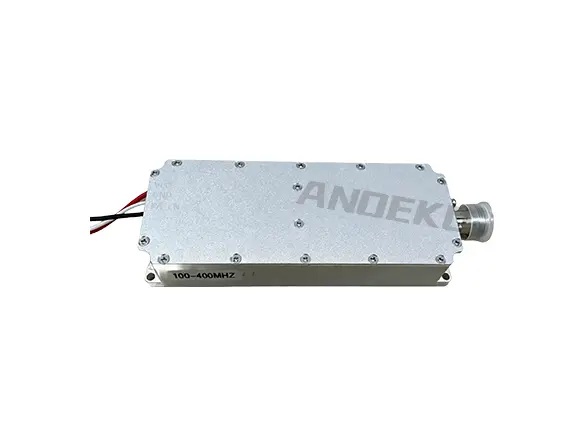

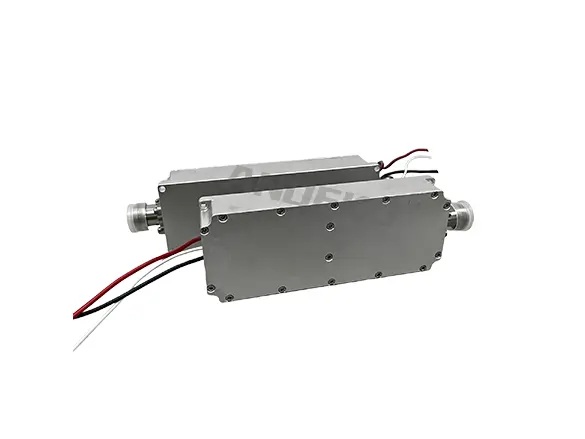

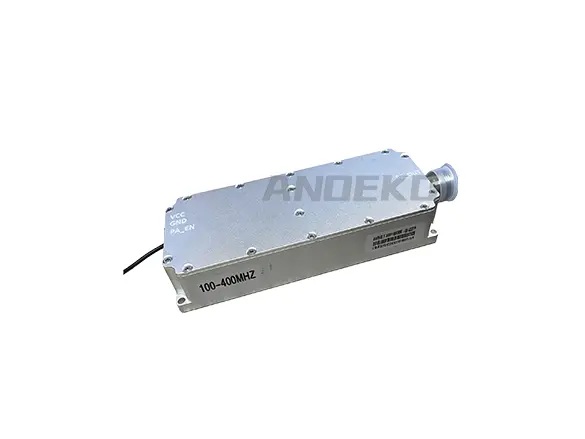

250-400MHz 50dBm RF Power Amplifier Module with Built-in Signal Source for Anti-Drone Systems

250-400MHz 50dBm RF power amplifier module with built-in signal source, designed for anti-drone and UAV jamming applications. Features 24-32V wide voltage support, -40~+55C operating range, N-type female connector, and compact 156.564.724.5mm housing. Includes enable control and alarm functions for stable, reliable performance in drone countermeasure systems....
Hotline：+86 18948793112

Products

  RF input connector.jpg

Test itemsIndexUnitRemark
Frequency range250-400MHzBuilt-in noise source
Operating voltage24-32VTypical voltage 28V built-in voltage regulator module
Power supply requirementsGreater than 10A
Maximum output power50dBm≤7.3 A
Work efficiency50%Typical work efficiency
Output port VSWR≤2

High and low temperature test
- Working environment temperature (℃)
- Power stability		-40~+55
1.5		℃
dB
-20 ℃ ~ + 75 ℃
Powered byM4 Feedthrough Capacitor
Red and black wire or through-hole capacitor
Communication interfaceCON2*4
1, 2, 3, 4 pin NC
8pin enable (high open, low close)
6pin temperature alarm (normal low level, alarm high level)
7pin standing wave alarm (normal low level, alarm high level)
5pin GND
RF output connectorN or sma
Female
RF input connectorSMA
Female
Size156.564.724.5mmNot including interface
Mounting holes151.5*59.4mmM3*10 steel screw
