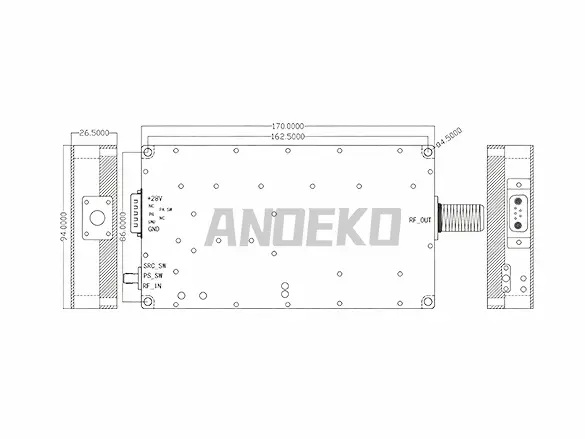

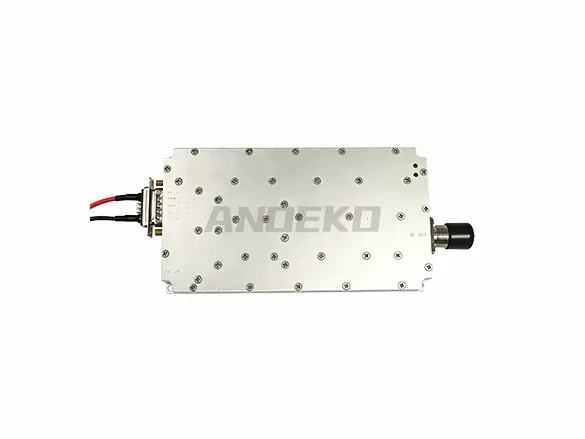

Appearance and installation instructions:
1. Overall dimensions: 170*94*26.5mm
2. Interface form:
① Power supply conditions: +30V power supply: 7W2 (male)
② RF input interface: SMA-KFD (optional)

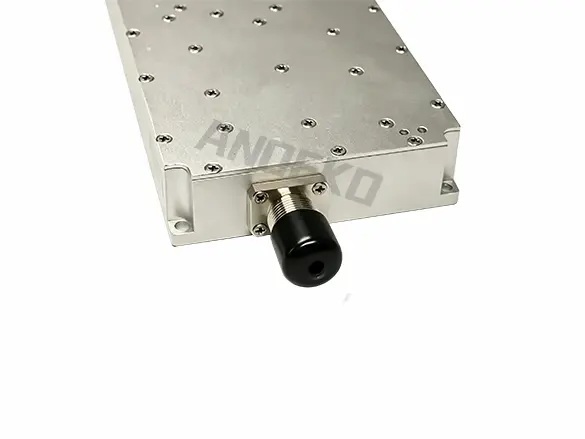

③ RF output interface: N-KFD

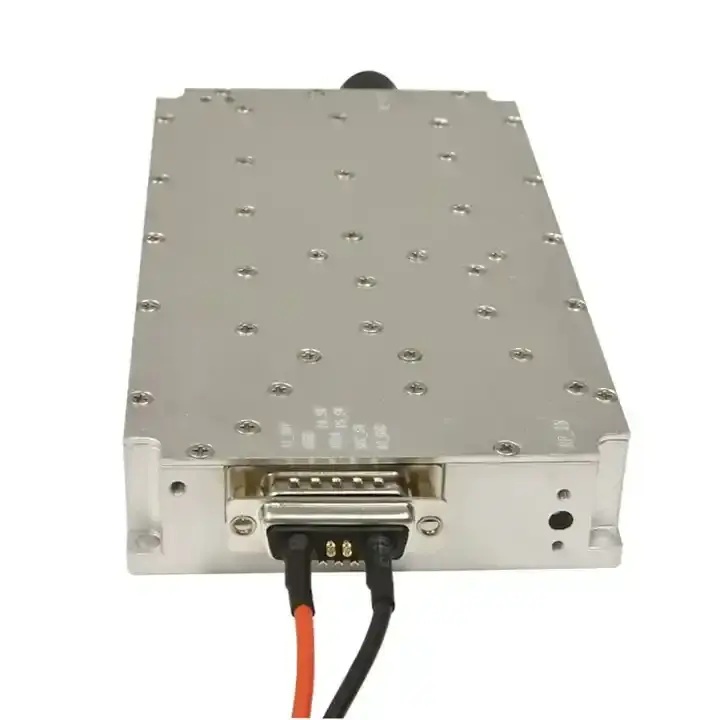

④ Control interface:
a. 7W2 (male) socket: The first pin is connected to the power amplifier enable PA_SW (high level 5V/3.3V power amplifier turns on, low level or floating, the power amplifier turns off)
b. Feedthrough capacitor: From top to bottom, they are SRC_SW (internal signal source switch 5V/3.3V on, floating or grounded signal source off), PS_SW (internal and external signal source switch, low level is the built-in source, high level 5V/3.3V switch to external source)
3. Mounting hole diameter: Leave 4 Φ4.5mm through holes at the mounting holes for mounting M3 screws.
Technical parameter table
| Parameter | Specification |
|---|---|
| Frequency | 860-930 MHz |
| Output Power | 50 dBm |
| In-band group delay | ≤1 μs |
| Gain | 45±1.0 dB, 45±1.0 dB (external input 5 dBm, power amplifier output 50 dBm) |
| In-band fluctuation | ≤2.5 dB (peak-to-peak value) |
| Input voltage standing wave ratio (VSWR) | ≤1.35 |
| Output voltage standing wave ratio (VSWR) | ≤1.3 |
| Supply voltage (Typical) | +30 Vdc (Range: 24-36 V) |
| Supply current | ≤5.5 A @ +30 Vdc (100W) |
| Output RF connector | N-50KFD |
| Size | 170×94×26.5 mm (excluding connectors) |
| Input signal source | Built-in high-efficiency modulation sweep signal source, which can also be connected to external sources |
| Interface definition:1. 7W2 male socket2. Feedthrough capacitors (from top to bottom) | 1. A1 is the 30V power input, and A2 is GND;2. The first pin of 7W2 is the PA_SW power amplifier enable;3. The upper feedthrough capacitor is SRC_SW (internal signal source switch), high-on, low-off;4. The lower feedthrough capacitor is PS_SW (internal and external source switch), high: external source; low: built-in source; |
