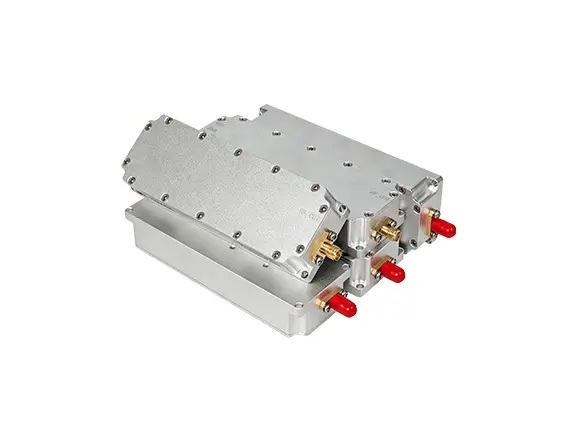

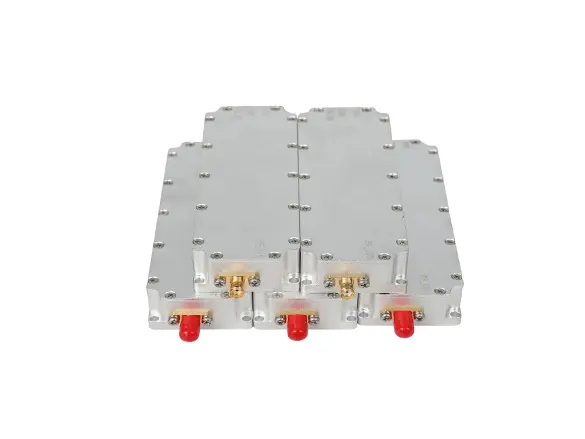

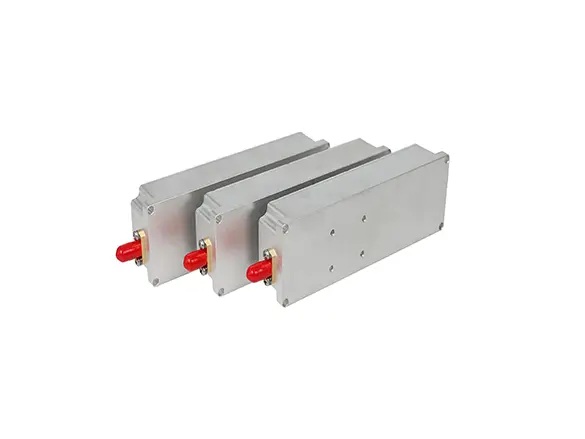

ANOEKO Anti-Drone RF Module - Full Specification Table
| Test Item | Specifications | Unit | Remarks |
|---|---|---|---|

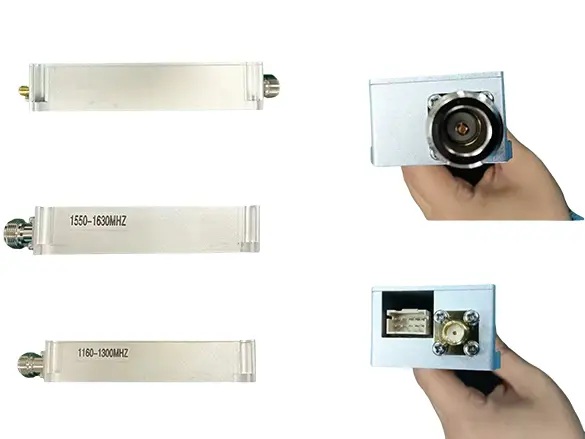

| Frequency Range | 5725-5850 / 5150-5350 / 2400-2500 / 1550-1620 / 1180-1280 / 840-930 / 420-450 | MHz | With built-in efficient sweep source; customizable frequency bands available |
| Working Voltage | 28 | V | - |
| Gain | 38-40 | dB | - |
| Output Power | 47±0.5 | dBm | 3.5A / 3.3A |
| Output Port VSWR | ≤1.30 | / | Tested without power supply, grid points the test |
| Operating Temperature Range | -40 ~ +55 | °C | Wide temperature range for harsh environments |
| Power Stability | ≤1.0 | dB | - |
| Power Supply Requirements | ≥4A | / | Supports continuous wave (CW) output of 50W |
| Power Supply Interface | Capacitive feedthrough design | / | Optional red/black wire connection |
| Enable Control | High-active, optional | / | High level open, low level closed |
| Vibration Resistance | Meets military on-board equipment standards | / | Ruggedized for high-reliability applications |
| RF Input/Output Connector | SMA (Female) | / | Standard interface for easy integration |

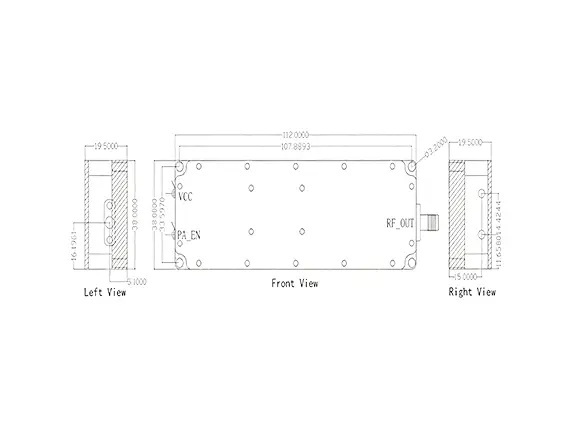

| Dimensions | 112 × 38 × 19.5 | mm | Excluding SMA connectors |
| Mounting Hole Spacing | 107.9 × 33.6 | mm | Compatible with M2.5×10 screws |
| Weight | 0.2 | Kg | Lightweight aluminum alloy housing |
