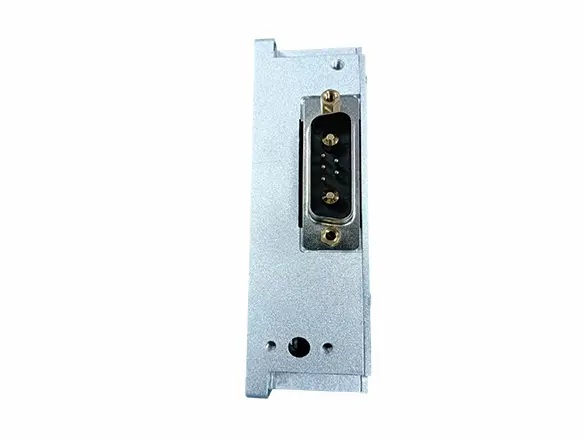

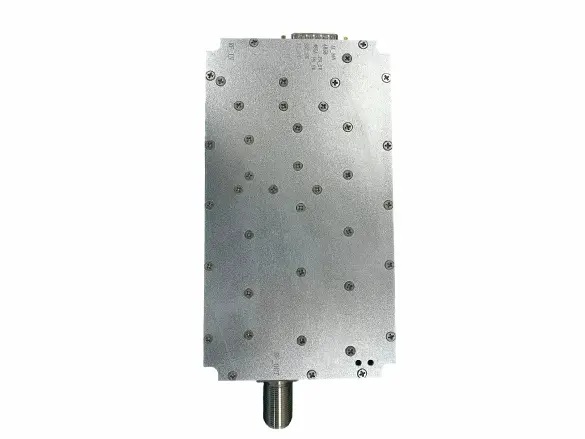

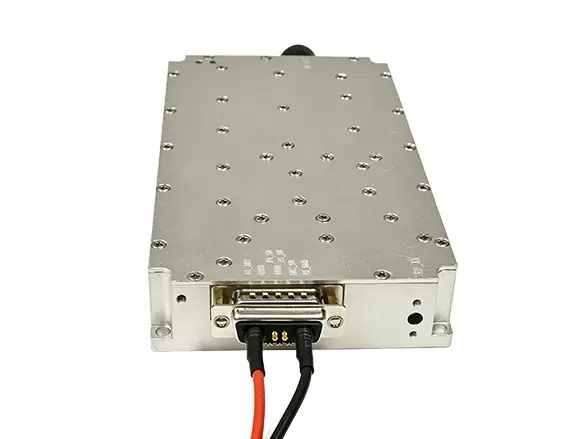

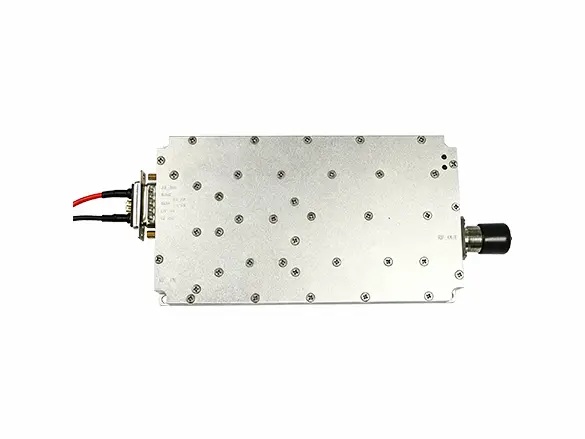

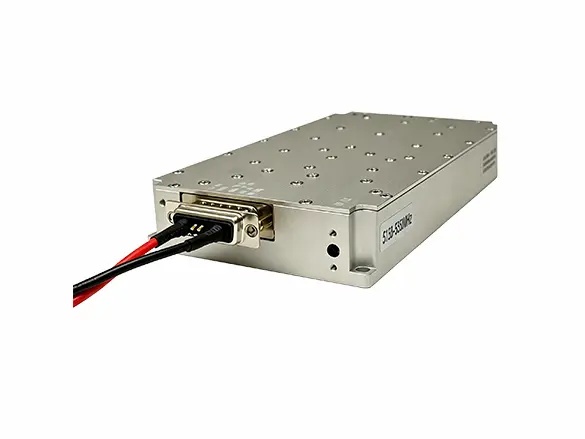

Appearance and installation instructions:1. Overall dimensions: 170*94*26.5mm 2. Interface form: ① Power supply conditions: +30V power supply: 7W2 (male) ② RF input interface: SMA-KFD (optional) ③ RF output interface: N-KFD ④ Control interface: a. 7W2 (male) socket: The first pin is connected to the power amplifier enable PA_SW (high level 5V/3.3V power amplifier turns on, low level or floating, the power amplifier turns off) b. Feedthrough capacitor: From top to bottom, they are SRC_SW (internal signal source switch 5V/3.3V on, floating or grounded signal source off), PS_SW (internal and external signal source switch, low level is the built-in source, high level 5V/3.3V switch to external source) 3. Mounting hole diameter: Leave 4 Φ4.5mm through holes at the mounting holes for mounting M3 screws.
ANOEKO 5150-5350MHz 100W GaN Amplifier Module - Specification Table
| Parameter | Specifications |
|---|---|
| Product Name | ANOEKO 5150-5350MHz 100W GaN Power Amplifier Module |
| Frequency Range | 5150–5350 MHz |
| Output Power | 50 dBm (100 W) |
| In-band Group Delay | ≤ 1 µs |
| Gain | 45 ± 1.0 dB (at 9 dBm external input, 50 dBm output) |
| In-band Fluctuation | ≤ 2.5 dB (peak-to-peak) |
| Input VSWR | ≤ 1.35 |
| Output VSWR | ≤ 1.3 |
| Supply Voltage (Typical) | +30 VDC (Range: 24–36 VDC) |
| Supply Current | ≤ 6.5 A @ +30 VDC / 100 W |
| RF Input Interface | SMA-KFD (Optional) |
| RF Output Interface | N-50KFD |
| Control Interface | 7W2 Male Connector & Feedthrough Capacitors |
| Mounting Holes | 4 × Φ4.5 mm through holes (for M3 screws) |
| Dimensions | 170 × 94 × 26.5 mm (excluding connectors) |
| Input Signal Source | Built-in high-efficiency modulation sweep signal source, compatible with external sources |
