PRODUCT PARAMETER
| Parameter | Specification | Unit | Remarks |
|---|---|---|---|

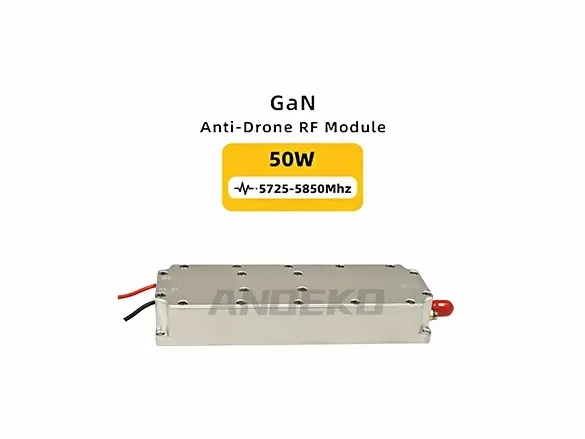

| Product Type | GaN Anti-Drone RF Power Amplifier Module | - | For 5.8G Drone Countermeasures |
| Frequency Range | 5725–5850 (Customizable: 4.9G/5.2G/5.8G) | MHz | Built-in interference signal source |
| Max Output Power | 50W (47±0.5 dBm) | W / dBm | Continuous wave output, ≤3.4A @50W |
| Working Voltage | 24–30 (Nominal: 30) | VDC | Wide voltage support for industrial use |
| Working Efficiency | ≥60 | % | High-efficiency GaN technology |
| Gain | 47±1 | dB | Peak-to-peak value, high linearity |
| Passband Ripple | ≤2 | dB | Stable signal performance |
| Working Temperature | -10 ~ +55 (startable at low temps) | °C | Wide operating range for field deployment |
| Gain Stability | ±1.5 dB @ -40°C ~ +55°C | dB | Excellent performance consistency |
| Power Stability | ±1.5 dB @ -40°C ~ +55°C | dB | Reliable output under extreme conditions |
| Power Supply Requirement | ≥3.7A @ +30VDC | A | Sufficient for full 50W continuous operation |

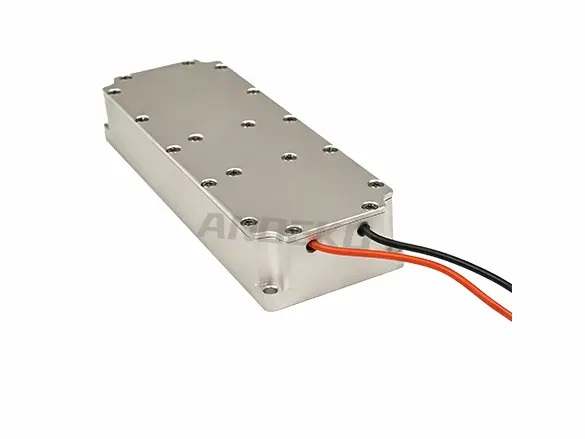

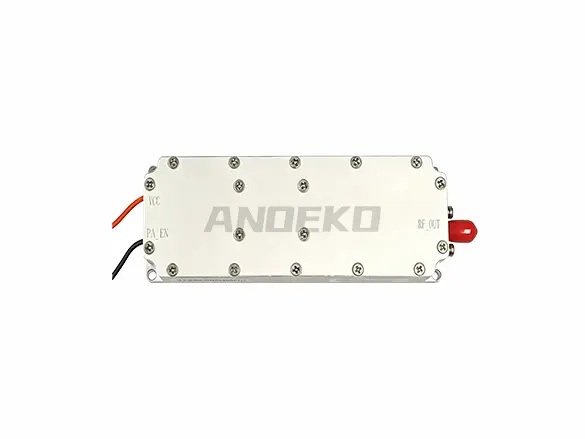

| Power Interface | Red (+), Black (-) | - | Clear polarity marking for safe connection |
| Enable Control | White line (high=ON, low=OFF) | - | Flexible remote on/off control |

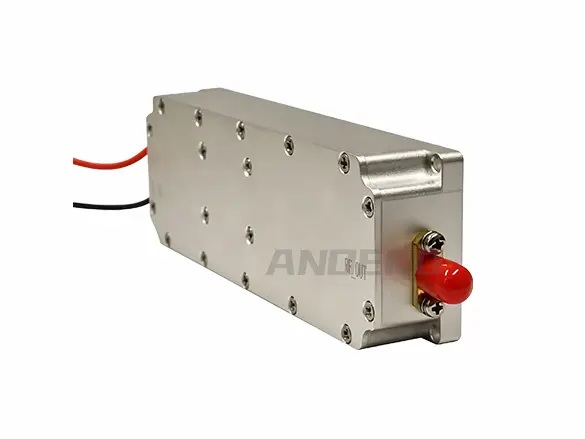

| RF Connector | SMA female (external screw base) | - | Standard interface for antenna connection |

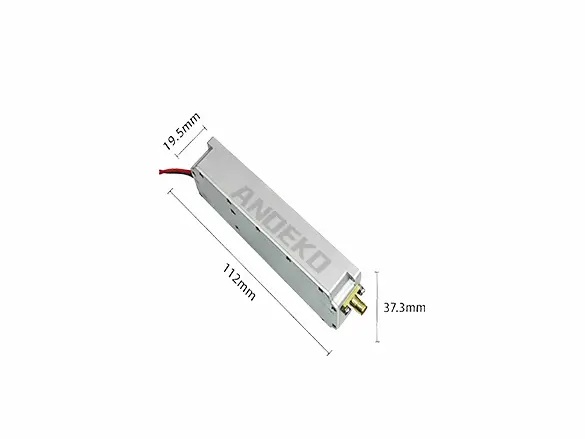

| Dimensions (Excluding SMA) | 37.3 × 112 × 19.5 | mm | Compact, lightweight aluminum housing |
| Weight | 160 (Net) / 760 (with package) | g | Portable design for integration |
