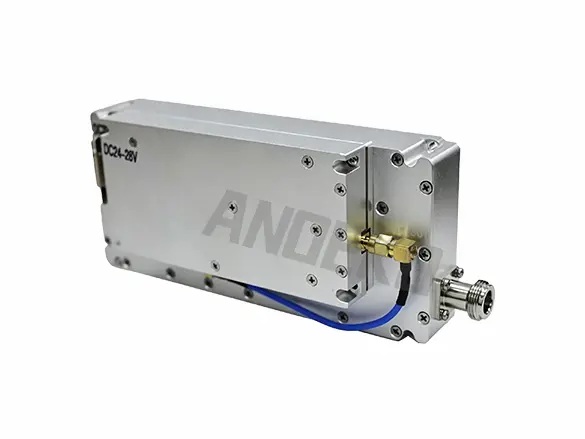

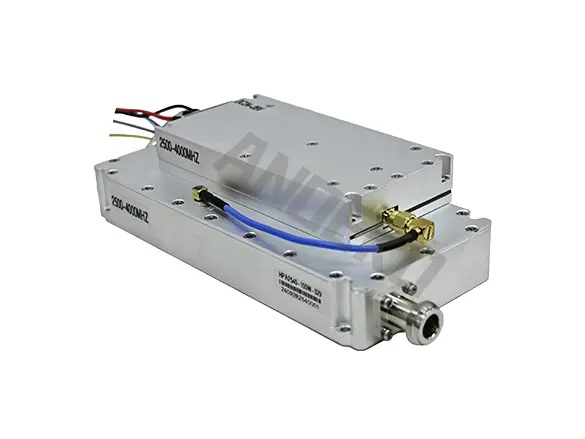

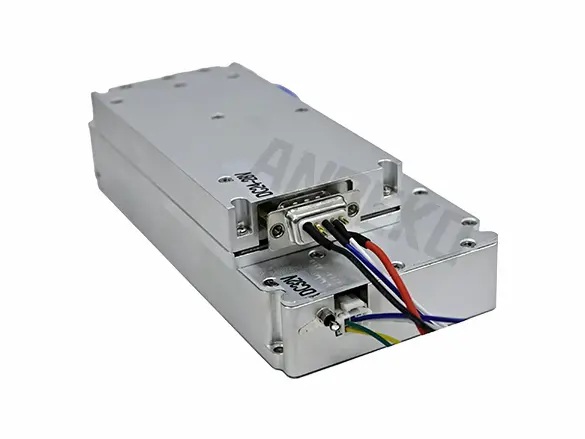

| Item | Specification | Unit | Remarks |
|---|---|---|---|

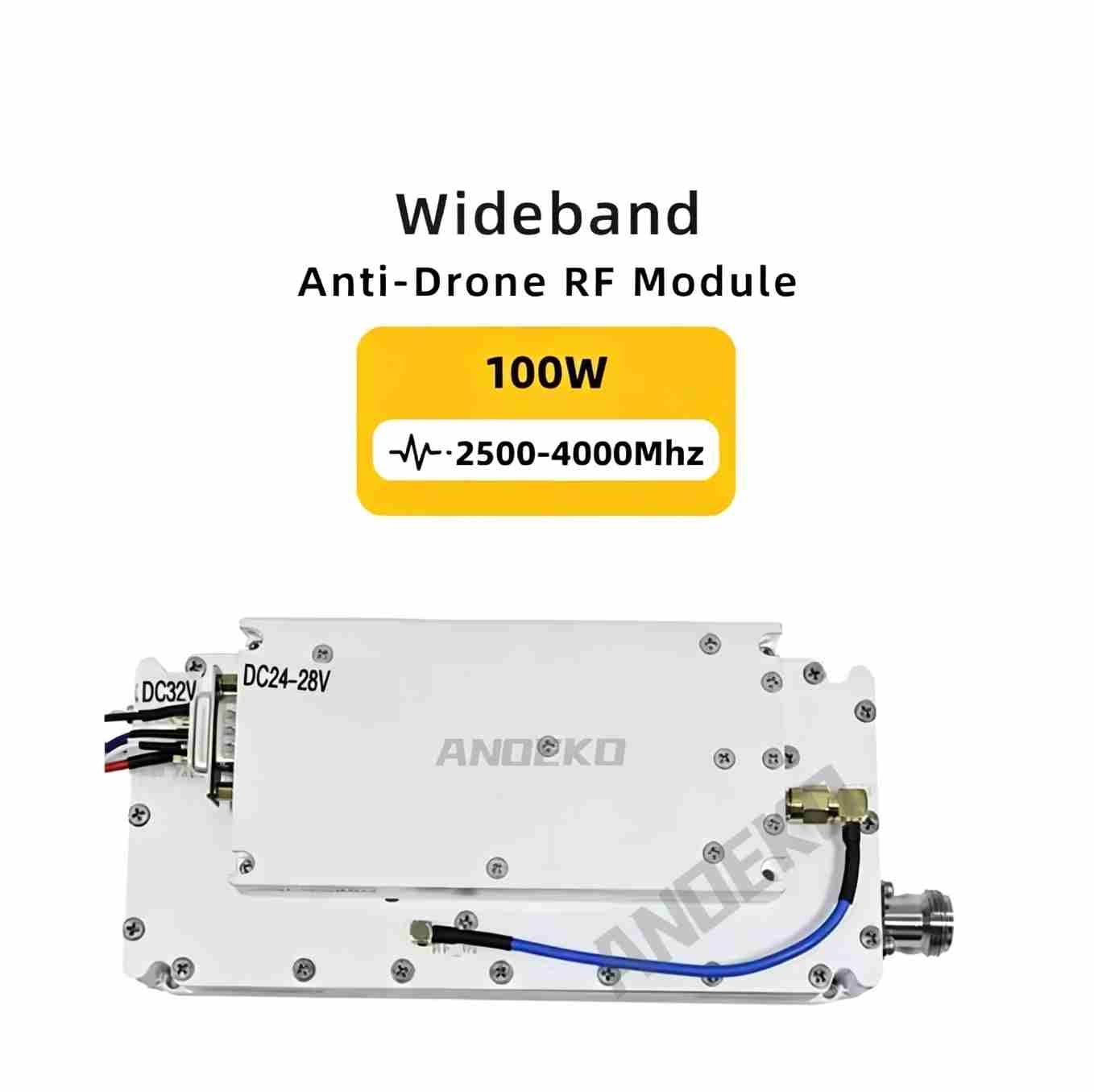

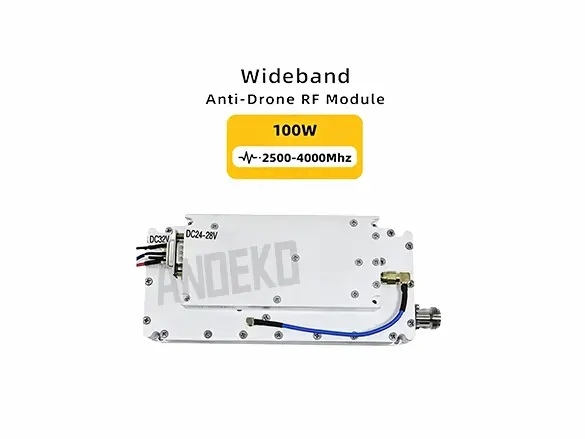

| Frequency Range | 2500–4000 | MHz | Ultra-wideband coverage for anti-drone signal jamming |
| Working Voltage | 32 (Typical) | V | 28–32V DC, compatible with standard industrial power supplies |
| Maximum Output Power | 100 | W | 100W@9A continuous wave (CW) for reliable UAV countermeasure |
| Power Amplifier Efficiency | 32 | % | High efficiency @ 100W to reduce heat generation |
| Maximum Power Gain | 45 | dB | High-gain RF amplification for extended jamming range |
| Gain Flatness | ≤5 | dB | Stable performance across the full frequency band |
| Standard Input Power | 5 | dBm | Optimized for compatibility with most signal generators |
| Maximum Non-Damaged Input Power | ≤10 | dBm | Built-in protection against over-input signals |
| Output Port VSWR | ≤2 | — | Low reflection for stable operation; tested via network analyzer |
| Operating Temperature | -10 ~ +55 | °C | Wide range for both indoor and outdoor anti-drone deployments |
| Power Stability | ±1.0 @ -40 ~ +55 | °C | Consistent output power even under extreme temperature conditions |
| Power Supply Requirement | ≥11A @ +32V DC | — | Sufficient power to sustain 100W continuous output |
| Control Communication Interface | RS485 + TTL | — | Supports temp/current/voltage monitoring and power adjustment |
| RF Connectors | Input: SMA / Output: N-Female | — | Standardized connectors for easy integration into jamming systems |

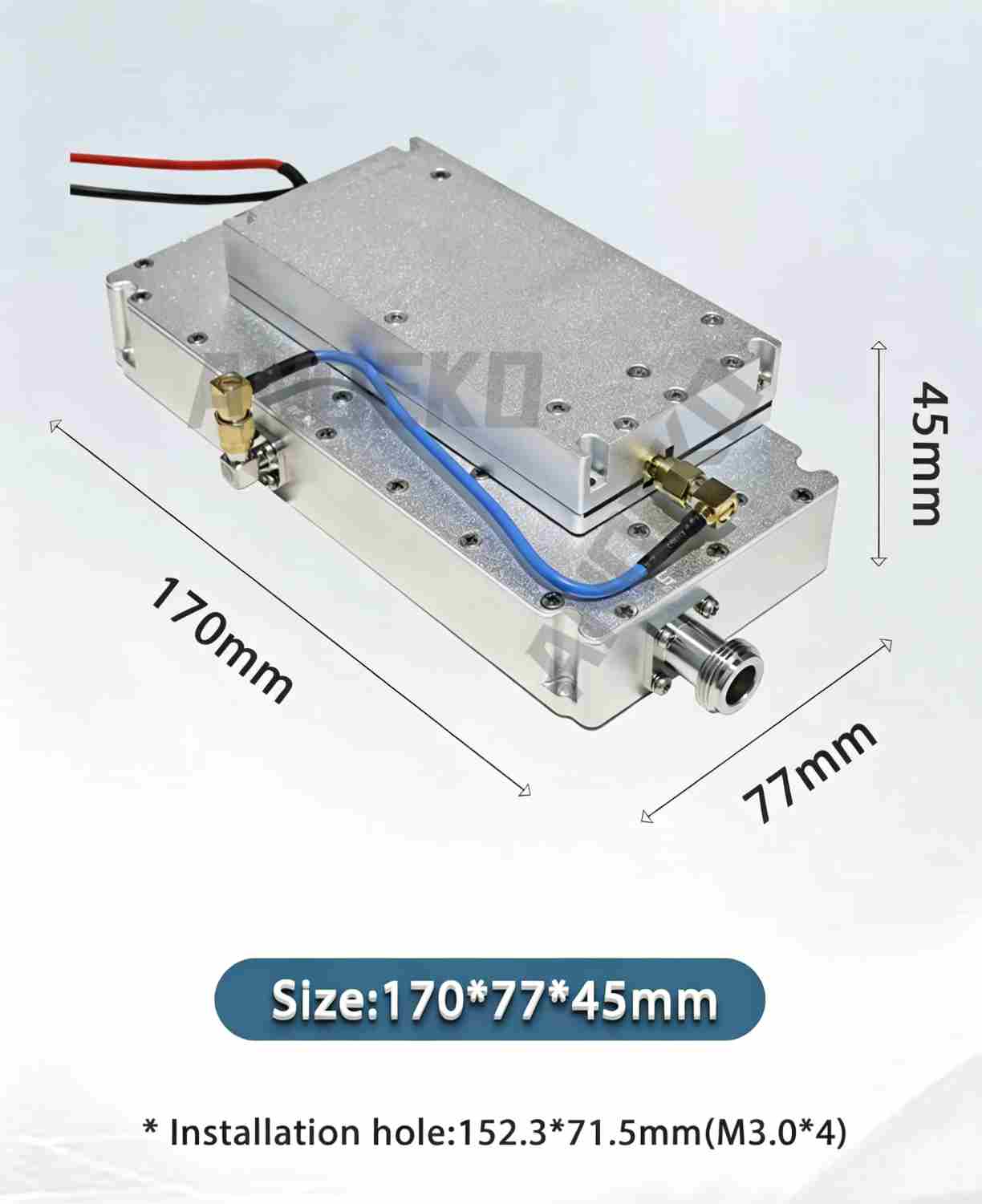

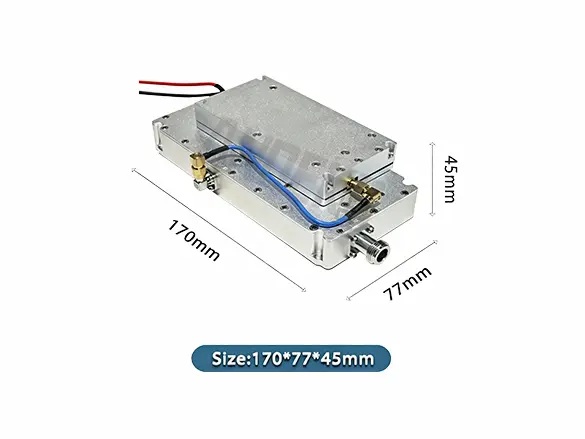

| Dimensions | 170 × 77 × 45 | mm | Compact aluminum housing for portable and fixed installations |
| Weight | 918 | g | Lightweight design for vehicle-mounted or man-portable use |
| Mounting Holes | 152.3 × 71.5 (M3.0×4) | mm | Standard mounting pattern for quick system integration |
