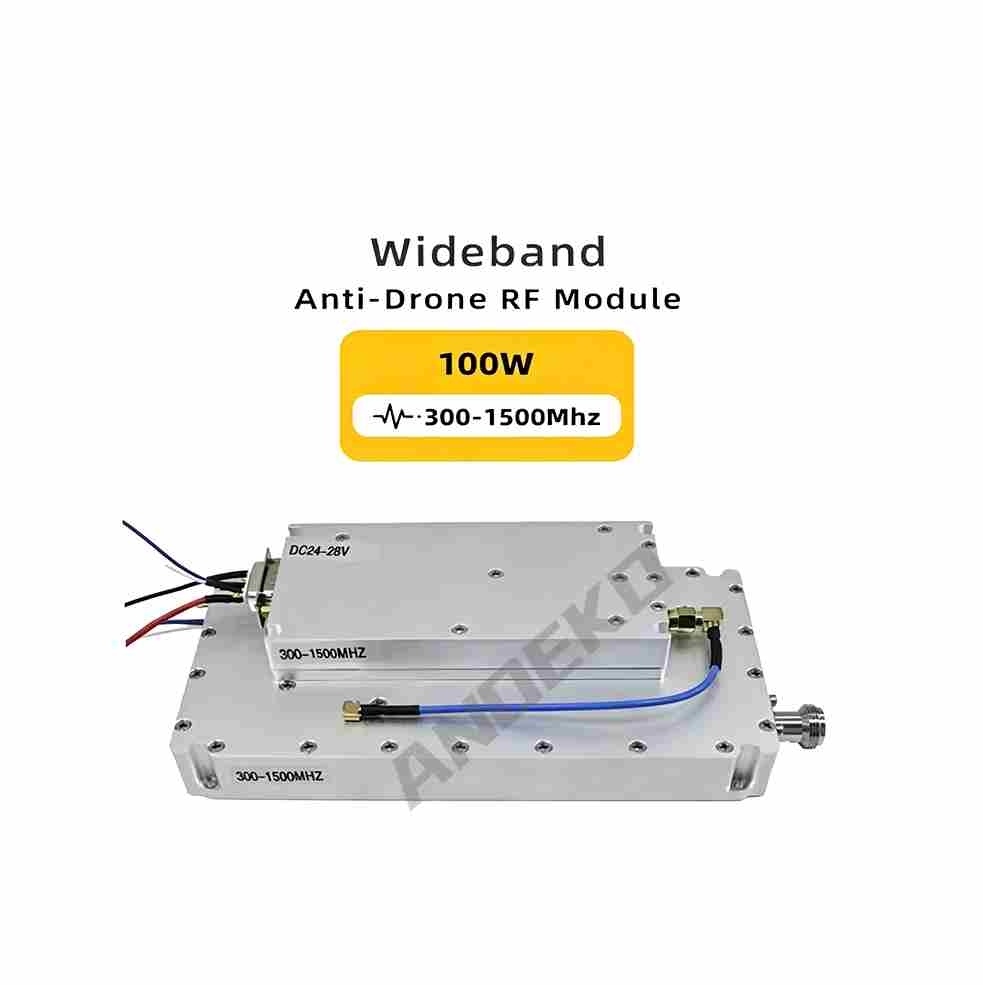

100W GaN Anti-Drone RF Power Amplifier Module | 300-1500MHz Wideband

 Meta Description

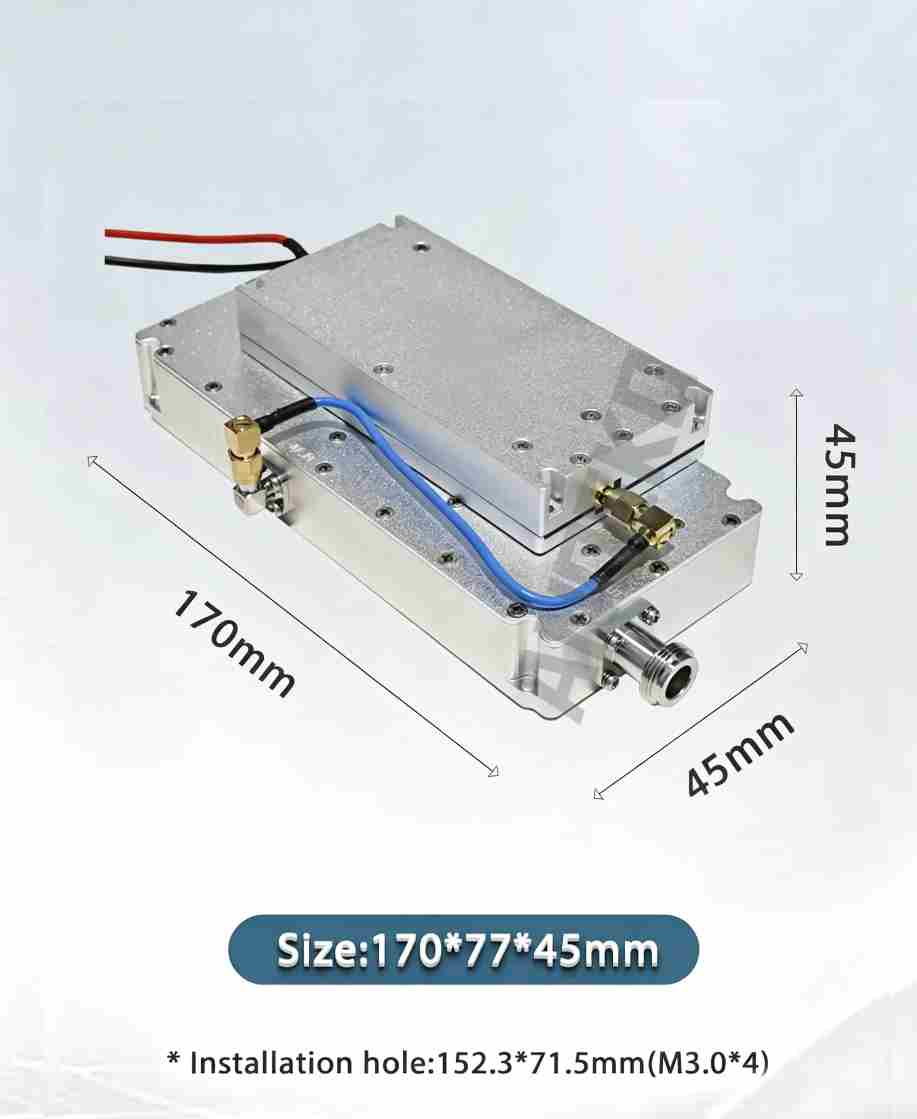

 High-performance 100W GaN anti-drone RF power amplifier module with 300-1500MHz wide frequency range, 45dB maximum gain, 43% efficiency, and 28-32V DC working voltage. Features 485/TTL communication, temperature/current/voltage detection, and compact 170*77*45mm design for UAV jamming, signal countermeasure, and anti-FPV applications. Supports continuous wave 100W output, VSWR ≤2, and stable operation in harsh environments (-10~+55°C).

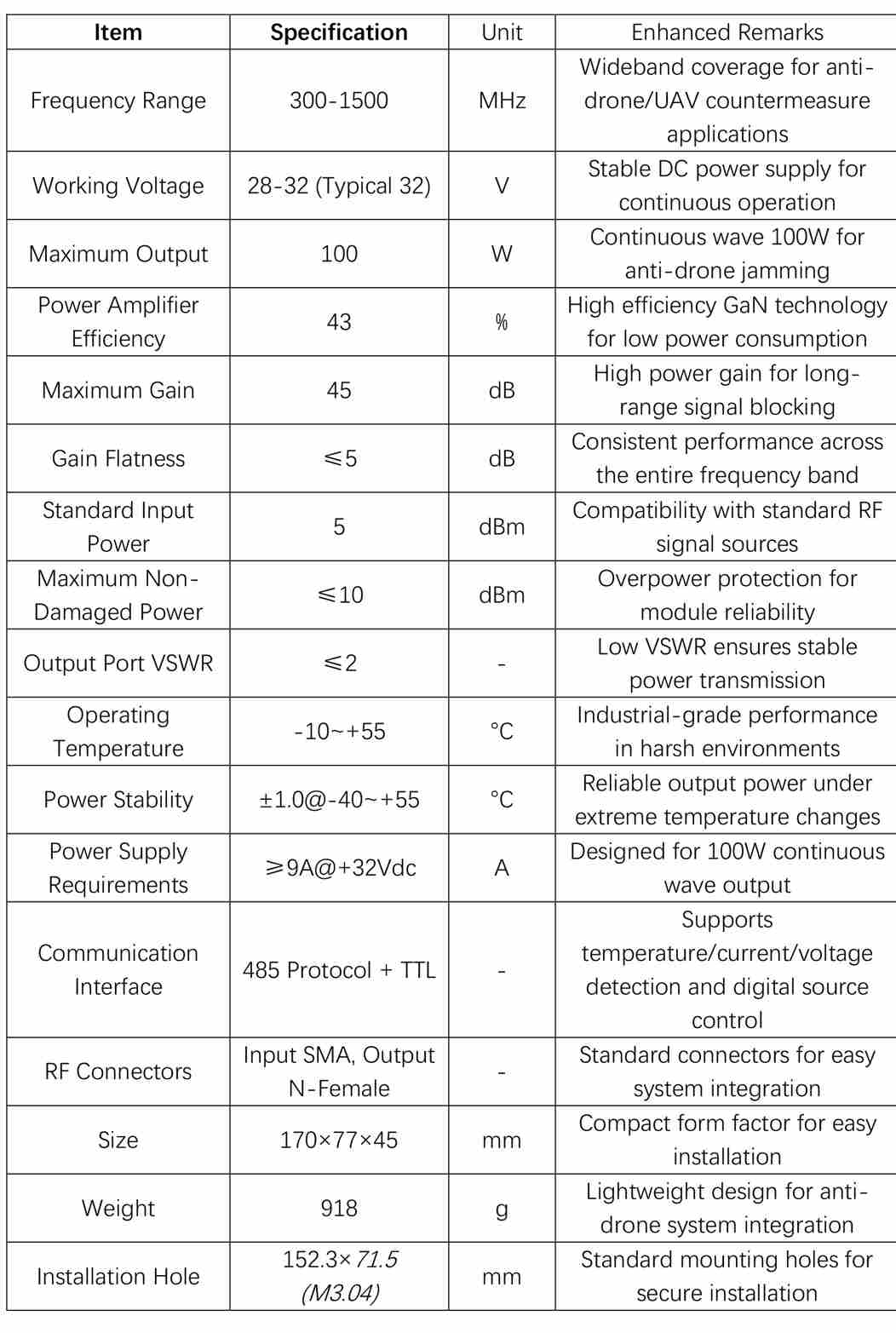

Key Specifications
