ALT-CY02 Portable Counter-UAS System | Drone Detection Jamming & Deception

Product Overview

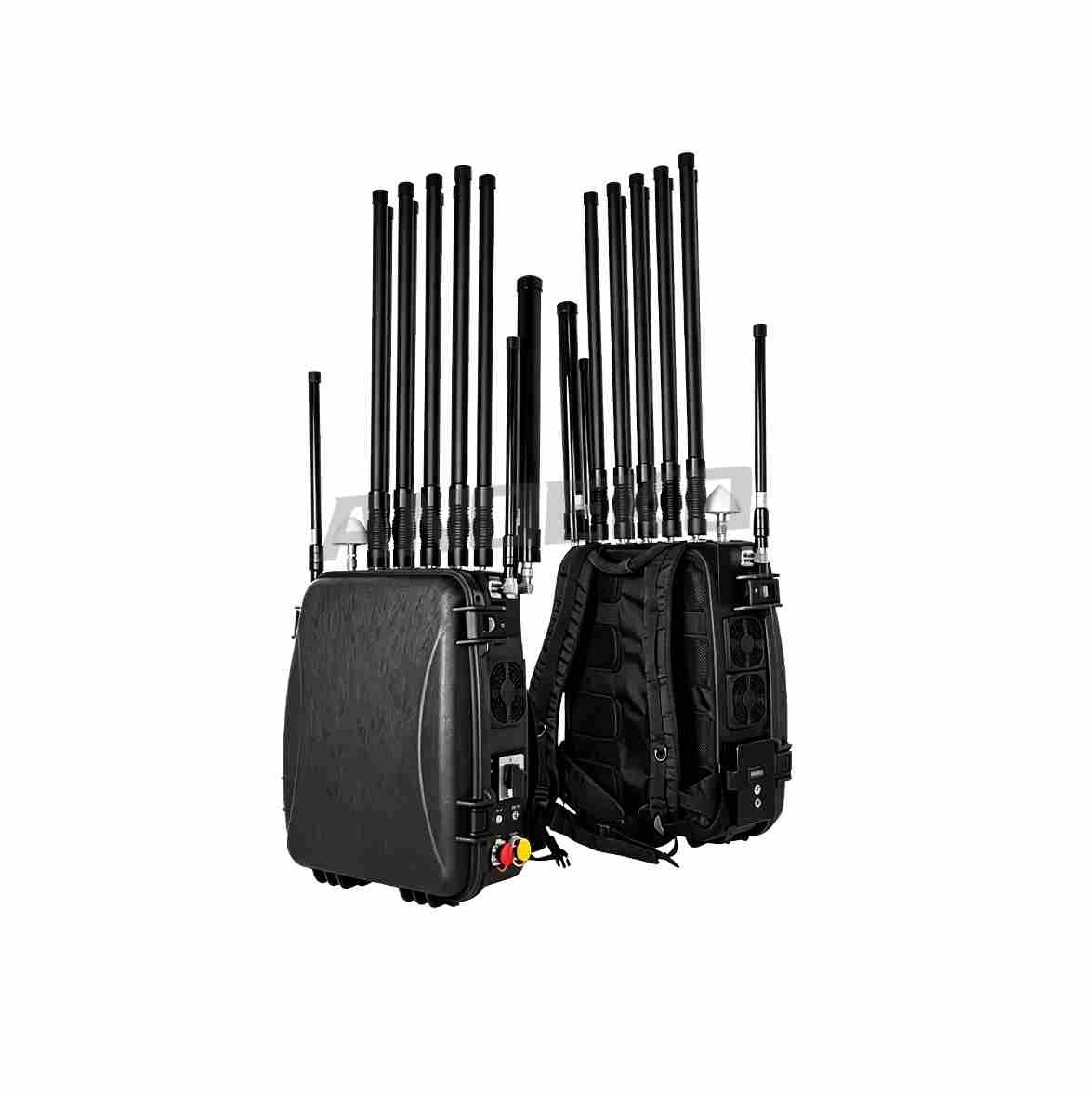

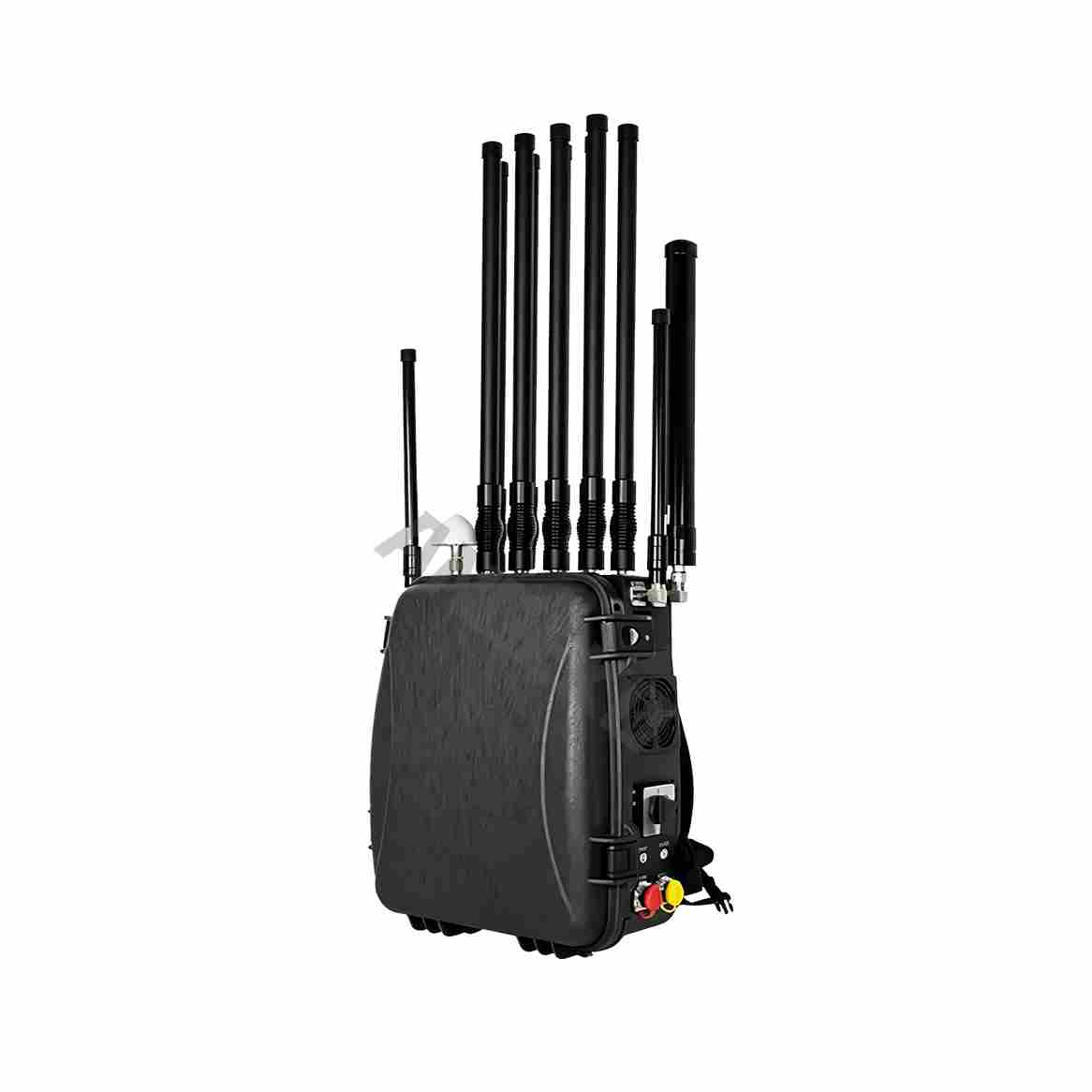

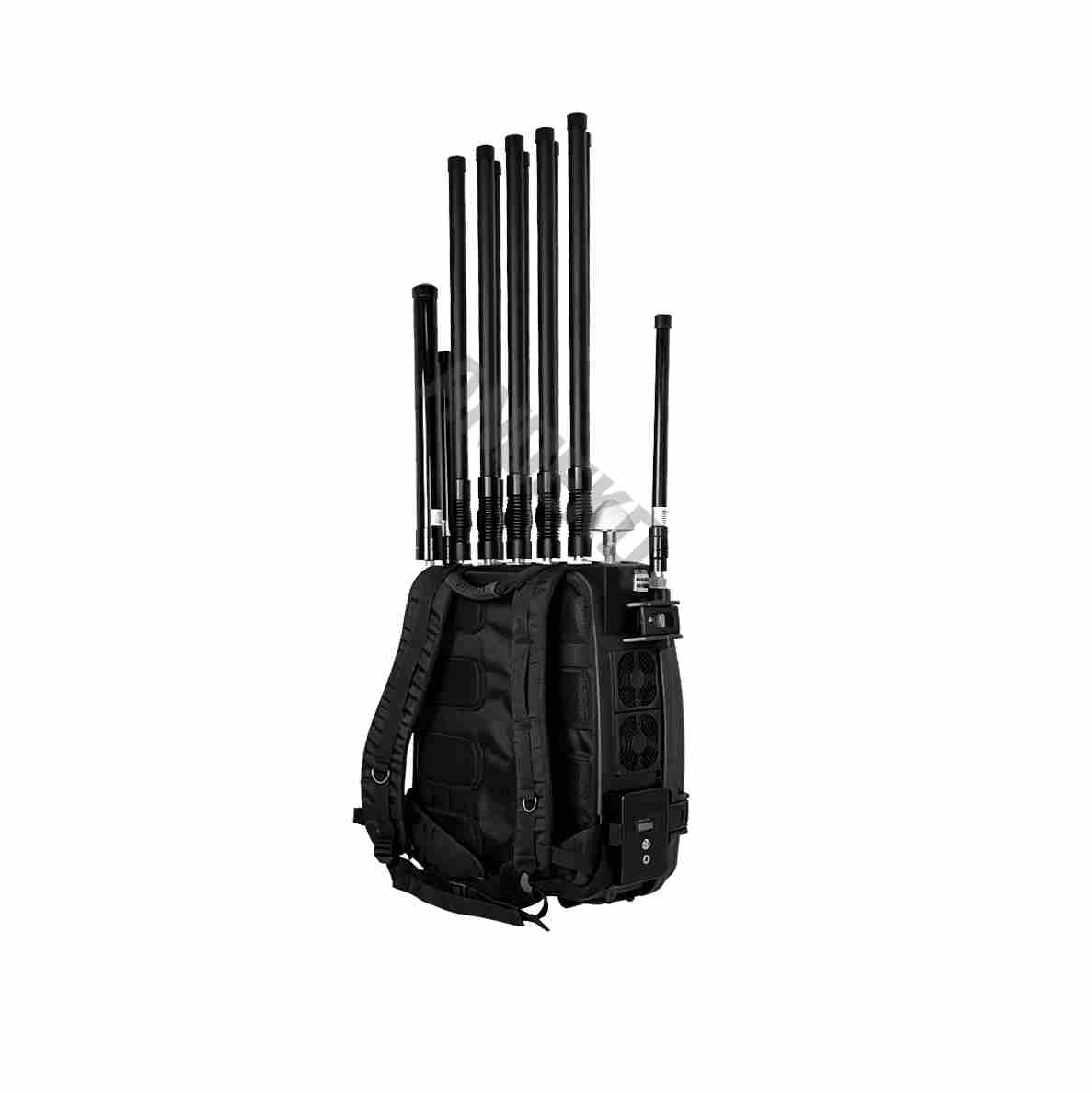

  The ALT-CY02 is a backpack‑mounted, portable Counter‑UAS (C-UAS) electromagnetic system integrating RF detection, jamming, and GNSS deception. Built with a modular multi‑channel power amplifier architecture, it combines spectrum sensing, RF transmission, spoofing, power management, and handheld control for full‑band precision signal suppression. Compact, high‑power, and frequency‑customizable, it addresses asymmetric operations and low‑altitude security in complex environments.

Key Specifications (SEO‑Optimized)

• Frequency Bands: 600–800 MHz, 800–1050 MHz, 1550–1620 MHz, 2400–2500 MHz, 5150–5300 MHz, 5725–5850 MHz

• Output Power: 47 dBm (50 W) per channel

• Detection Range: ≥5 km

• Spectrum Coverage: 0–8 GHz (full‑band scanning & analysis)

• GNSS Spoofing: GPS L1CA, GLONASS G1, BDS B1I, GALILEO E1

• Deception Range: >500 m (10 dBm)

• Response Time: <10 seconds

• Battery Life: 45 min continuous operation (25 AH battery)

• Weight: ≤18 kg (unit only)

• Dimensions: 469 × 385 × 135 mm

• Antennas: Omnidirectional fiberglass + directional panel (3±1 dBi, 150 W capacity)

• Control: Handheld controller (start/stop, channel switching, detection activation)

• Operating Power: ≤400 W, efficiency ≥50%
