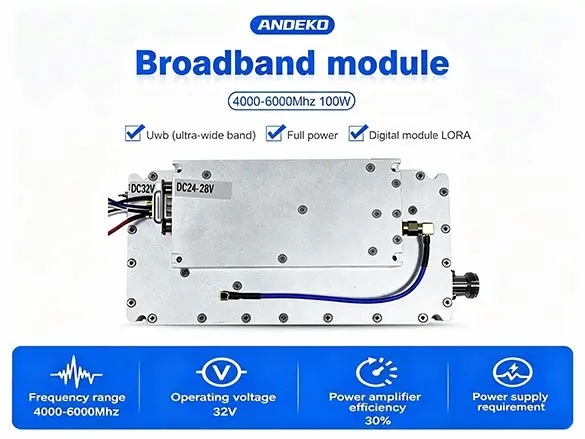

This 4000–6000MHz 100W GaN RF power amplifier is a professional new anti-drone module integrated with internal circulator, specially developed for anti-UAV and anti-FPV jamming equipment targeting DJI civilian drones. Adopting high-performance GaN chip solution, this 100W anti-drone module realizes stable continuous wave RF output across 4000MHz~6000MHz frequency range. Different from ordinary broadband RF power amplifier module, it reserves TTL and RS485 communication interfaces, supporting real-time monitoring of working temperature, supply current and RF output power, and allows remote parameter configuration matching digital signal sources.
The built-in circulator effectively protects internal circuit from reflected power, greatly improving long-term continuous operation reliability. Compact aluminum alloy housing brings excellent heat dissipation, suitable for portable and vehicle-mounted anti-drone system integration. As a flexible customized anti-drone module, it can be modified to satisfy diverse broadband counter-UAV project requirements.
GaN semiconductor core, higher efficiency & better stability compared with traditional LDMOS devices

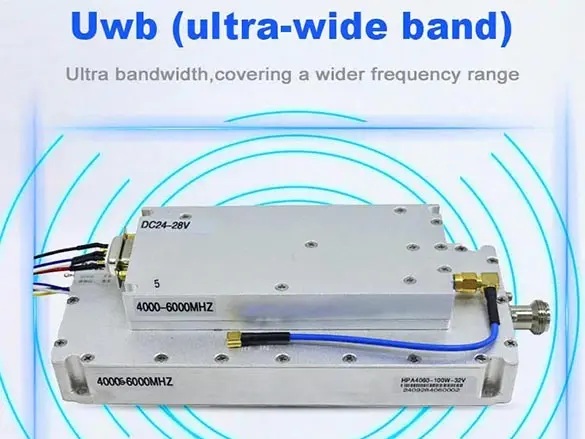

Wide operating bandwidth: 4000MHz – 6000MHz

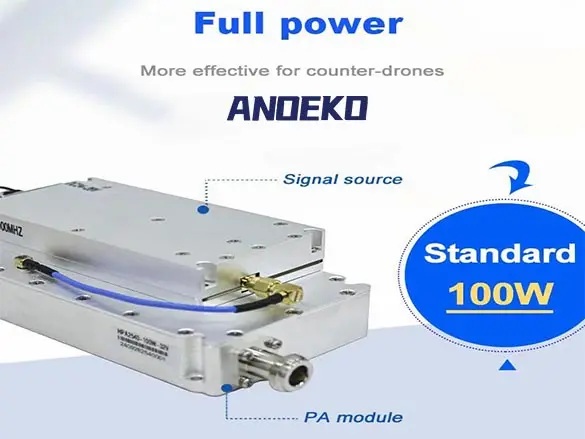

Stable 100W continuous-wave saturated power output
Built-in circulator to enhance anti-reflection protection
Maximum power gain up to 42dB, gain flatness ≤5dB
Dual digital control: TTL communication + RS485 communication protocol
Real-time detection support: temperature, current, voltage & RF output power
Wide working temperature: -10℃ ~ +55℃ with stable power fluctuation ≤±1.0dB
Standard N-type RF output port, SMB-JE input port

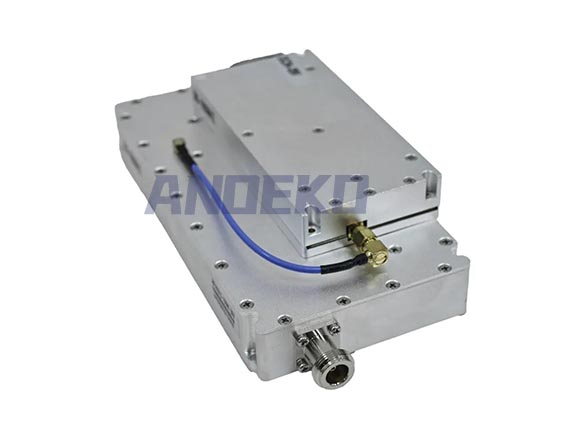

Rugged metal enclosure, easy installation with M3 mounting holes
Plug-and-play structure for anti-FPV jamming system assembly
| Item | Parameter | Remarks |
|---|---|---|
| Frequency Range | 4000 – 6000 MHz | Wideband anti-drone frequency band |
| Operating Voltage | DC 28~32V (Typical 32V) | Rated working voltage 32V |
| Max Output Power | 100W | 100W@9.5A typical continuous wave output |
| Power Added Efficiency | 30% | Tested under full power output |
| Maximum Gain | 42 dB | Maximum small-signal power gain |
| Gain Flatness | ≤5 dB | Within full frequency band |
| Standard Input Power | 7 dBm | Normal drive input level |
| Maximum Safe Input Power | ≤10 dBm | Maximum non-damaged input signal |
| VSWR Requirement | ≤2 | Input port standing wave indicator |
| Working Temperature | -10℃ ~ +55℃ | Support high & low temperature test |
| Power Stability | ±1.0dB @ -40℃ ~ +55℃ | Power consistency under temperature variation |
| Power Supply Demand | ≥10A @32VDC | For continuous 100W output |
| Communication Interface | TTL + RS485 Protocol | 2.54mm 2*4 pin connector |
| RF Connector | Input: SMB-JE; Output: N Female | Built-in circulator inside module |
| Dimension | 17090.324.5 mm | Module overall size |
| Weight | 750 g | Net weight |
| Mounting Hole | 152.371.5mm, M3.04 | Fixing installation standard |
Lead Time
| Quantity(PCS) | ＜100pcs | ＜500pcs | 500~1000pcs | ＞1000pcs |
|---|---|---|---|---|
| Lead Time(Days) | 3 | 3-5 | 7-12 | To be negotiated |
We provide comprehensive customization for this RF power amplifier module: Laser marking Logo, frequency band fine-tuning, output power adjustment, communication protocol optimization and customized packaging. MOQ for each single customization item: 1PC
