Drone Radar-EO System

ANOEKO AOK-02 LSS Target Detection Radar | C-UAS Drone Surveillance Radar

ANOEKO AOK-02 series 3D pulse Doppler radar delivers 360 all-weather low slow small drone detection, multi-model fixed & vehicle-mounted C-UAS radar for event security & power plant protection....

Hotline：+86 18948793112

Products

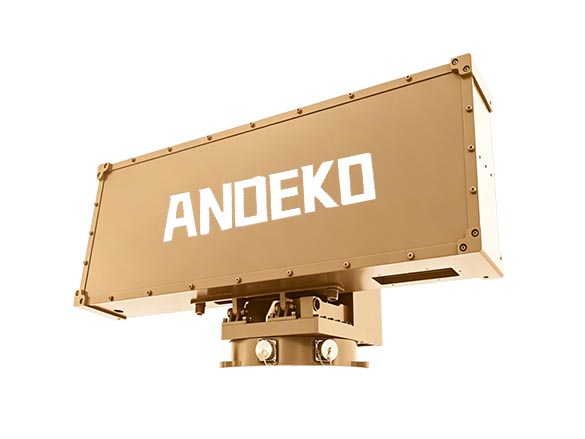

ANOEKO AOK-02 Series 3D Pulse Doppler Radar for Low Slow Small UAV & Drone Detection

With rampant unauthorized drone black flights threatening public gatherings, power grids and critical facilities, demand for reliable LSS target detection radar continues to surge globally. As a leading supplier of full-spectrum counter drone detection solutions, ANOEKO launches the AOK-02 series drone detection radar, a professional three-dimensional pulse Doppler radar engineered exclusively for low-altitude low-slow-small target surveillance. This counter UAS radar adopts mechanical azimuth scanning + frequency elevation scanning architecture, delivering full 360° omnidirectional coverage, high-precision multi-target tracking and flexible fixed/vehicle mounting options to meet diversified low-altitude security deployment needs.

counter UAS radar.jpg

1. Product Technical Profile & Core Working Principle

The ANOEKO AOK-02 drone detection radar applies linear frequency modulation pulse Doppler technology, the mainstream mature solution for modern C-UAS radar systems.

Azimuth scanning mode: Full 0°–360° mechanical rotation scanning, no blind azimuth zone for perimeter airspace monitoring
Elevation scanning mode: Frequency scanning to realize vertical layered detection, capturing low-altitude drones hovering at varying heights
Core advantage over conventional radar: Outstanding identification capability for mini consumer UAVs such as DJI Phantom 4, effectively solving the detection bottleneck of low RCS LSS targets in complex ground clutter environment.

This counter UAS radar acts as the core sensing node of passive wireless drone detection system, perfectly matched with ANOEKO Handheld Drone Detector, Portable FPV Drone Detector and RF spectrum sensors to build a multi-source fusion all-band drone detector defense network for airports, large events and energy infrastructure.

2. Full AOK-02 Series Model Specifications Comparison Table

ANOEKO AOK-02 radar covers five configurable variants (AOK-02A / AOK-02B / AOK-02C / AOK-02C-ku / AOK-02D), with differentiated detection range, precision, weight and power consumption to fit light patrol, medium-range perimeter and long-distance full-site monitoring scenarios.

Performance Parameter	AOK-02A	AOK-02B	AOK-02C	AOK-02C-ku	AOK-02D
Max Detection Range (DJI Phantom 4)	>4km	>5km	>8km	>6km	Customized
Azimuth Coverage	0°–360°	0°–360°	0°–360°	0°–360°	0°–360°
Elevation Coverage	0°–30°	0°–40°	0°–40°	0°–30°	0°–30°
Range Measurement Accuracy	<8m	<8m	<8m	<8m	<8m
Azimuth Angle Accuracy	<0.6°	<0.6°	<0.4°	<0.4°	<0.5°
Elevation Angle Accuracy	≤1°	≤0.6°	≤0.4°	≤0.5°	≤0.3°
Data Refresh Rate	6s	3s	3s	3s	3s
Maximum Trackable Target Capacity	>500 batches	>500 batches	>500 batches	>500 batches	>500 batches
Total Equipment Weight	<27kg	35kg	73kg	<85kg	≤100kg
Rated Power Consumption	≤160W	≤220W	≤400W	<980W	≤1200W
Deployment Mounting	Fixed / Vehicle-mounted	Fixed / Vehicle-mounted	Fixed / Vehicle-mounted	Fixed / Vehicle-mounted	Fixed / Vehicle-mounted

3. Core Competitive Advantages of ANOEKO AOK-02 LSS Target Detection Radar

3.1 Ultra-Large Multi-Target Tracking Capacity

All AOK-02 variants support simultaneous tracking of over 500 aerial targets, providing powerful anti-drone swarm performance. For large-scale mass events, stadium security and military perimeter defense, this drone detection radar continuously separates drone echoes from birds, trees and building clutter to avoid missing multiple concurrent rogue UAV intrusions.

3.2 High Angular & Ranging Precision

The series delivers centimeter-level positioning auxiliary accuracy with range error controlled below 8 meters. High-precision azimuth and elevation resolution supports seamless linkage with electro-optical tracking cameras, RF jammers and navigation spoofing equipment, forming a complete “detect-track-counter” closed-loop C-UAS workflow.

3.3 Flexible Dual Deployment Forms

Every model supports both fixed ground installation and vehicle mobile mounting. Security teams can rapidly deploy the lightweight AOK-02A for temporary concert, sports tournament and summit anti-terrorism patrols, while heavy-duty AOK-02C / AOK-02D long-range radar suits permanent 24/7 protection for nuclear power plants, oil depots and substation power systems.

3.4 Graded Model Selection for Full-Scenario Coverage

Light-duty AOK-02A: Compact weight under 27kg, low power ≤160W, ideal for short-range perimeter and temporary event drone surveillance
Mid-range AOK-02B: Extended 5km detection distance, 40° vertical coverage, balanced cost-performance for urban public security
Long-range AOK-02C: Industry-leading 8km detection radius, highest angle precision, core radar for high-value critical infrastructure
Ku-band AOK-02C-ku: Optimized for high-density urban canyon clutter suppression, specialized downtown low-altitude monitoring
Heavy-duty AOK-02D: Top-tier elevation accuracy, high power for ultra-long-distance industrial and military airspace defense

4. Main Application Scenarios for ANOEKO AOK-02 Counter UAS Radar

As a core hardware of passive wireless drone detection system, the AOK-02 drone detection radar is widely adopted in global low-altitude security verticals:

Large Public Assembly Anti-Terror Security
Sports stadiums, music festivals, international summits and parade venues deploy AOK-02 series radar to monitor illegal FPV drone detect and prevent unauthorized aerial shooting, crowd safety hazards and terrorist UAV threats.
Power Grid & Energy Facility Protection
Substations, hydropower stations, oil & petrochemical plants and nuclear energy sites rely on AOK-02 LSS target detection radar for 24-hour all-weather airspace monitoring, blocking rogue drones carrying combustible materials or reconnaissance cameras.
Airport Low-Altitude Clear Zone Defense
Combined with ANOEKO AOK-T3 Handheld Drone Detector, the radar forms a long-range + short-range layered airport drone detection system to eliminate UAV incursions that risk flight collision and airport operation disruption.
Government & Military Base Perimeter Surveillance
Fixed-mounted AOK-02C long-range radar constructs full 360° early warning zones around confidential government compounds and military camps, supporting automatic real-time alert for all incoming low slow small UAV targets.
Mobile Law Enforcement & Border Patrol
Vehicle-mounted AOK-02A / AOK-02B enables mobile C-UAS missions for border control, urban anti-black-flight inspection and emergency rapid response.

5. Compatibility with ANOEKO Full C-UAS Product Ecosystem

The AOK-02 drone detection radar realizes seamless data interconnection with all ANOEKO counter drone hardware:

Pair with AOK-T3 Portable FPV Drone Detector for on-site manual confirmation of drone ID, pilot position and flight trajectory
Link with ANOEKO RF jamming systems and GNSS navigation spoofing devices for automatic soft-kill countermeasures upon target lock
Integrate with ANOEKO SkyNet multi-sensor fusion platform to combine radar, RF spectrum analyzer, infrared optical and acoustic detection data for unified low-altitude situational display
Support access to centralized security command platforms for multi-site joint low-altitude airspace management

Conclusion

Against the continuous expansion of low-altitude security risks brought by miniaturized, swarm-capable civilian drones, ANOEKO AOK-02 series LSS target detection radar fills the market gap of cost-effective, high-precision 3D pulse Doppler counter UAS radar. Covering detection ranges from 4km to 8km with multi-weight and power options, this drone detection radar delivers flexible fixed and vehicle deployment solutions for event security, energy infrastructure, airport protection and military defense. Combined with ANOEKO’s full lineup of passive wireless drone detection equipment including Handheld Drone Detector and all-band drone signal detector, the AOK-02 radar builds a complete, scalable C-UAS defense system to tackle global low slow small aerial threats.
