100W High Linearity GaN RF Power Amplifier AOK-2000-6000

Broadband RF Amplifier with Bottom Heat Sink for Anti-UAV & Anti-FPV Systems

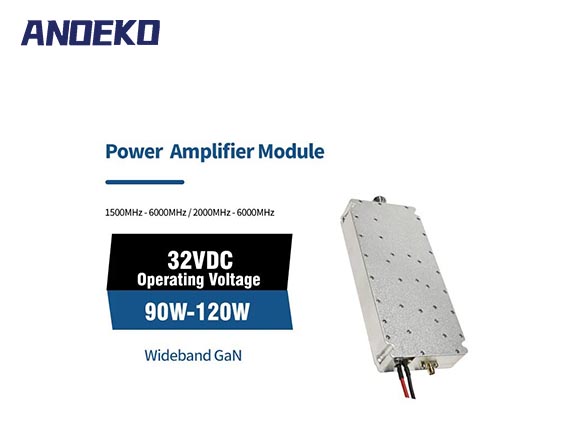

Product Overview

The AOK-2000-6000 high linearity GaN RF power amplifier serves as a premium new anti-drone module built for broadband counter-UAV jamming platforms. Adopting high-performance GaN chip architecture, this 100W anti-drone module supplies steady saturated RF power output covering the full 2000–6000MHz spectrum, which includes mainstream control and video transmission bands for consumer FPV drones.

Compared with ordinary broadband RF amplifiers, this RF power amplifier module integrates an independent bottom heat sink design to achieve sustained stable output under long-duration continuous operation. The compact fully sealed metal housing provides outstanding heat dissipation and robust anti-interference capability, supporting seamless integration into anti-FPV suppression equipment, broadband electronic warfare devices and multi-band RF countermeasure systems. Available as a customized anti-drone module, it supports parameter modification to satisfy diversified system integration requirements for commercial and security anti-drone projects.

Key Features

• GaN semiconductor chip for superior high linearity and higher efficiency against traditional LDMOS solutions

• Broad operating frequency range: 2000MHz – 6000MHz

• Reliable continuous 100W stable RF power output

• Wide DC supply voltage: 28V – 32V

• Excellent signal linearity, ideal for high-performance broadband jamming applications

• Built-in bottom heat sink structure to enhance continuous working heat dissipation

• Rugged metal enclosure with strong environmental adaptability & anti-interference performance

• Standard SMA Female RF interface

• Wide operating temperature range: -40℃ ~ +55℃

• Compact structure with plug-and-play design for simple system installation

• Flexible customization support for different anti-drone project demands

Technical Specifications

• Frequency Range: 2000 – 6000MHz

• Max Output Power: 100W

• Operating Voltage: DC 28~32V

• Input Power: 6dBm

• Power Added Efficiency: 33%

• Operating Temperature: -40℃ ~ +55℃

• RF Port: SMA Female

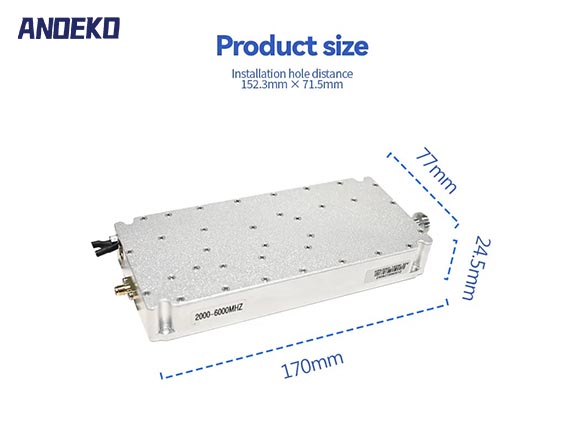

• Overall Dimension: 1707724.5mm

• Mounting Standard: M3 screw mounting holes

Lead Time

Customization Service

Multiple customization options are offered for this RF power amplifier module: Laser engraved Logo, frequency band adjustment, output power tuning and personalized packaging. MOQ for each separate customization item: 1PC
