ANOEKO AOK-100W 1500–2500MHz GaN RF Power Amplifier Module

100W Wideband RF Amplification with Advanced Monitoring and Protection

Product Overview

Selecting an RF power amplifier for a professional system requires more than comparing output power ratings. Frequency coverage, gain consistency, electrical requirements, thermal performance, protection functions, and control interfaces all influence how effectively a module can be integrated into the final equipment.

The ANOEKO AOK-100W GaN RF Power Amplifier Module is designed for RF applications operating across the 1500–2500MHz frequency range, with a rated maximum output power of 100W.

Built around Gallium Nitride (GaN) technology, this RF amplifier combines a compact metal enclosure with integrated monitoring and protection functions. Its RS-485 and TTL communication interfaces support access to operating information, including temperature, current, voltage, and RF output power, subject to the confirmed interface configuration.

With defined RF ports, mounting dimensions, and a 28–32V DC operating supply, the AOK-100W provides an integration-oriented hardware platform for professional RF equipment manufacturers, OEM developers, and system integrators.

Key Features

• 100W RF Output: Designed for high-power RF amplification, with a specified 100W continuous-wave output rating.

• 1500–2500MHz Frequency Coverage: A dedicated operating range for equipment requiring amplification within this frequency segment.

• GaN Technology: Gallium Nitride-based RF power amplifier architecture.

• Integrated Protection: Over-temperature and VSWR protection functions.

• RS-485 and TTL Interfaces: Communication options for system monitoring and control.

• Operating Data Monitoring: Supports monitoring of temperature, current, voltage, and RF output power.

• Compact Metal Housing: 170 × 77 × 24.5mm mechanical dimensions for equipment integration.

• OEM Integration Potential: RF connectors, power interfaces, and mechanical configuration can be reviewed against project requirements.

1. 1500–2500MHz Frequency Coverage for Defined RF Requirements

Frequency coverage is one of the most important considerations when selecting an RF amplifier module.

The ANOEKO AOK-100W operates across the 1500–2500MHz range, providing a defined frequency window for professional RF equipment and specialized wireless system development.

Compared with selecting an amplifier based only on its nominal center frequency, engineers should assess whether the required gain, output power, impedance matching, and thermal performance are maintained throughout the intended operating band.

For projects with specific frequency requirements, a dedicated-band RF amplifier module can provide a more clearly defined hardware configuration than a general-purpose broadband product.

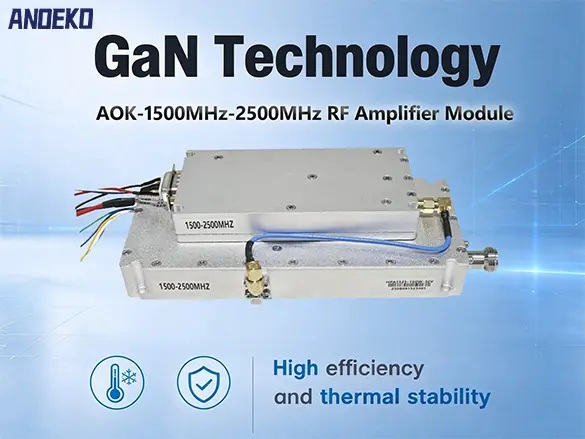

2. 100W Output Capability and GaN RF Technology

The AOK-100W is specified for up to 100W RF output power, with a stated continuous-wave output rating.

Its GaN-based architecture is intended for high-power RF amplification within the specified frequency range. When evaluating a 100W GaN RF amplifier, professional buyers should consider the relationship between output power, gain, DC input requirements, efficiency, and thermal management.

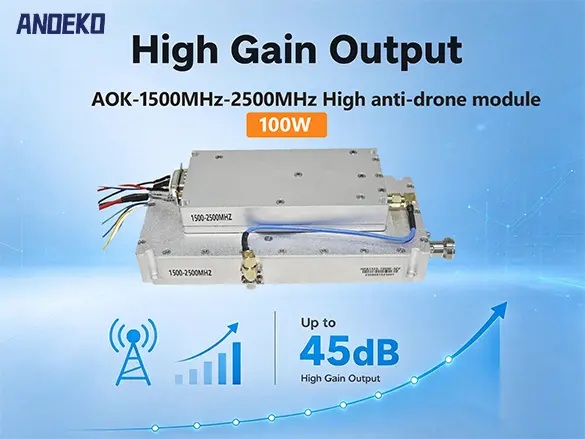

The supplied specification lists a maximum gain of 45dB and gain flatness of no more than 5dB.

These parameters provide useful reference points for RF system designers. Actual performance should be assessed using the manufacturer's confirmed test conditions and frequency-sweep data.

3. Integrated Monitoring and Protection Functions

Reliable system integration requires visibility into the operating condition of the RF amplifier.

The AOK-100W supports RS-485 and TTL communication interfaces and is specified with monitoring functions for:

• Operating temperature

• Supply current

• Supply voltage

• RF output power

The module also incorporates over-temperature and VSWR protection functions.

These features can support equipment-level monitoring and maintenance workflows. Before integration, engineering teams should confirm the communication protocol, connector pin assignment, supported commands, measurement accuracy, and protection thresholds.

4. Mechanical Design for Equipment Integration

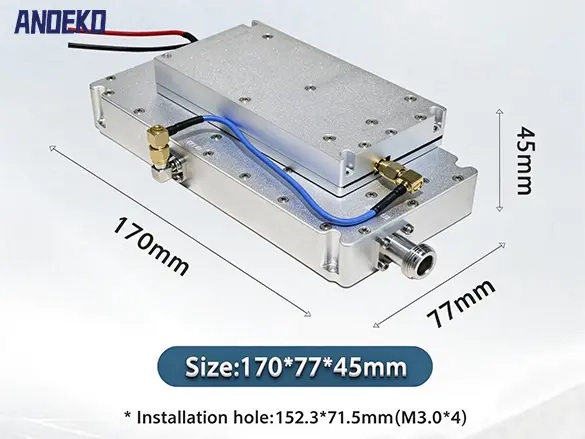

The AOK-100W uses a metal housing with overall dimensions of 170 × 77 × 24.5mm and a specified weight of approximately 750g.

The RF input uses an SMA connector, while the RF output uses an N-type female connector.

The mounting-hole arrangement is specified as 152.3 × 71.5mm, with four M3 mounting points.

These mechanical details help equipment manufacturers evaluate enclosure compatibility, mounting arrangements, RF cable routing, and access to the power and control interfaces.

For projects involving an existing equipment platform, the mechanical drawing and connector configuration should be reviewed before finalizing the installation design.

5. Designed for Professional RF Equipment and System Development

The AOK-100W can be evaluated for applications where a defined 1500–2500MHz RF amplification stage is required.

Potential application areas include:

Industrial RF Equipment

Integration into industrial RF equipment requiring a dedicated high-power amplification stage.

Wireless Communication Equipment Testing

Use in professional equipment development and RF performance evaluation, subject to the applicable test configuration and operating requirements.

RF Laboratories and Research

Integration into laboratory platforms and research projects involving RF power amplification and measurement.

Specialized RF System Integration

Evaluation by OEM developers and system integrators designing equipment with specific frequency, power, monitoring, and mechanical requirements.

Application suitability depends on the complete system architecture, applicable technical requirements, and local regulatory conditions.

6. Customized RF Amplifier Solutions for OEM Projects

Standard product specifications do not always match the mechanical, electrical, and interface requirements of every equipment project.

For OEM and ODM customers, ANOEKO can discuss project-specific requirements and assess the feasibility of suitable configurations.

Depending on the model and engineering requirements, discussions may cover:

• RF frequency and performance requirements

• RF connector configuration

• DC power interface

• Communication and monitoring interfaces

• Mechanical dimensions and mounting

• Thermal integration requirements

• Prototype evaluation and production planning

Customers should provide their target frequency range, output-power requirement, supply conditions, mechanical envelope, and control-interface requirements when requesting a customized RF amplifier module.

All customization options are subject to technical review and confirmation.

Technical Specifications

Frequently Asked Questions

Q1: What is the operating frequency range of the ANOEKO AOK-100W?

The AOK-100W is specified for operation across 1500–2500MHz. Buyers should confirm the required performance at their intended operating frequencies.

Q2: What is the rated output power?

The module is specified for up to 100W RF output power, with a 100W continuous-wave rating listed in the supplied technical information. The final datasheet should identify the applicable test conditions.

Q3: Does the module support remote monitoring?

The supplied configuration includes RS-485 and TTL communication interfaces and monitoring functions for temperature, current, voltage, and RF output power. Protocol details and connector pin assignments should be confirmed before integration.

Q4: What protection functions are included?

The product description specifies over-temperature and VSWR protection. Protection thresholds and operating behavior should be confirmed with the manufacturer.

Q5: Can the RF amplifier be customized?

Project-specific requirements can be submitted to ANOEKO for engineering review. Available options depend on the model, production configuration, and technical feasibility.

Q6: What information should I provide when requesting a quotation?

For a more accurate technical review, provide your target frequency range, output-power requirement, DC supply conditions, RF connector preferences, mechanical dimensions, monitoring requirements, and expected quantity.

Request Technical Information from ANOEKO

Choosing the right RF amplifier module starts with a clear understanding of the system requirements.

The ANOEKO AOK-100W provides a defined 1500–2500MHz frequency range, a specified 100W output rating, GaN-based amplification, monitoring interfaces, and integrated protection functions.

For product datasheets, technical clarification, configuration discussions, or OEM project inquiries, contact ANOEKO with your application requirements.

ANOEKO — RF Amplifier Modules and Engineering Solutions for Professional RF Integration.

All RF equipment must be evaluated, tested, and operated in accordance with applicable spectrum, equipment, safety, and regulatory requirements. Product performance and configuration should be confirmed with the manufacturer before procurement.
