FPV Detector

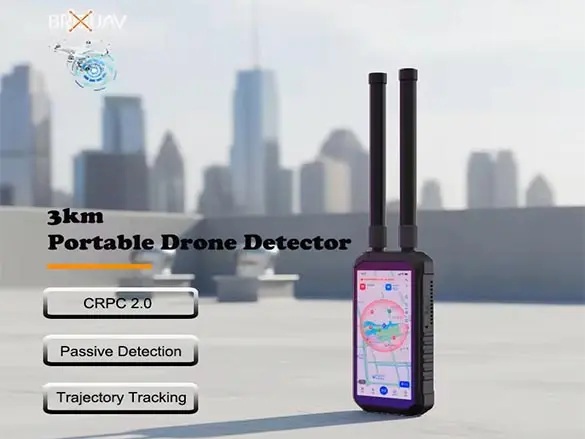

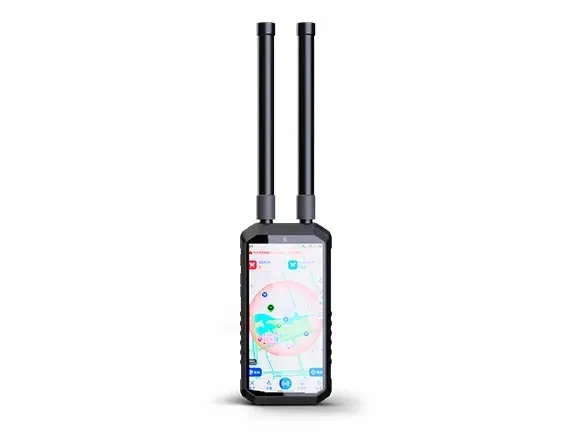

T4 Pro Handheld Drone Detector | Portable Passive Counter Drone Detection System

T4 Pro is a lightweight handheld drone detector adopting passive detection technology. This portable FPV drone detector covers 800MHz-5.8GHz frequency bands, features 3m positioning accuracy, 0-3km detection range and 5s fast response. It supports multi-target tracking, pilot locating, black & white list and network collaboration, ideal for individual low-altitude security defense....

Hotline：+86 18948793112

Products

I.Product Profile

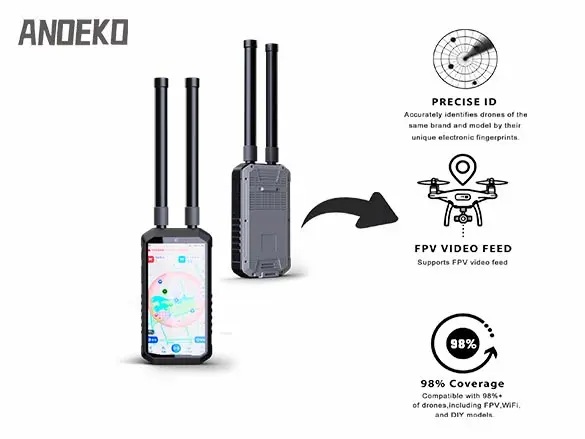

Equipped with CRPC 2.0 technology and advanced data chain decoding solution, this handheld drone detector extracts real-time flight data from specific signal formats. It can accurately identify drone video streams, serial numbers, coordinates, flight trajectories, altitude, flight speed and remote controller positions, enabling fast and precise detection, identification and localization of unauthorized drones.

As an all-in-one portable FPV drone detector, it features compact size and light weight, perfectly suited for individual low-altitude defense missions.

II.Technical Specifications

Item	Parameter
Detection Bands (Customizable)	800MHz&900MHz, 1.2GHz, 2.4GHz, 5.2GHz&5.8GHz, Wi-Fi
Detection Distance	0~3km (Varies by environment and drone model)
Sensitivity	-95dBm
Position Accuracy	≤3m (RMS)
Simultaneous Detection Quantity	≥15 Drones
Simultaneous Trajectory Tracking Quantity	≥11 Drones
Response Time	≤5s
Dynamic Detection Speed	0~80km/h (Vehicle speed)
Power Supply	Built-in lithium battery
Battery Capacity	12000mAh
Charging Parameter	Input: DC 12V, 2~3A Support PD 3.0 Fast Charging
Charging Time	≤3 hours (Power off, 0% to 100%) ≤4 hours (Working status, 0% to 100%)
Power Consumption	≤15W
Continuous Runtime	≥4h (Support charging while using)
Device Dimensions	177mm × 89mm × 30mm
Screen Size	6.0 inch
Weight	≤580g (±50g, without antenna) Single antenna: ≤46g
Operating Temperature	-25°C to +65°C
