| Category | Item | Parameter | Description |
|---|---|---|---|
| Device Interfaces & Buttons | Power Button | Main power control key | Long press 3 seconds to power on |
| Upgrade Interface | Dedicated port for firmware update | Matches Type-C cable | |
| Upgrade Indicator Light | Status prompt for upgrading | Light on during firmware update | |
| Alarm Light | Visual alarm indicator | Flashes when drone is detected | |
| Charging Port | TYPE-C | For battery charging | |
| Charging Indicator Light | Charging status prompt | Shows real-time charging progress | |
| Core Technical Parameters | Display Screen | 1.5 inches | For data, spectrum and menu display |

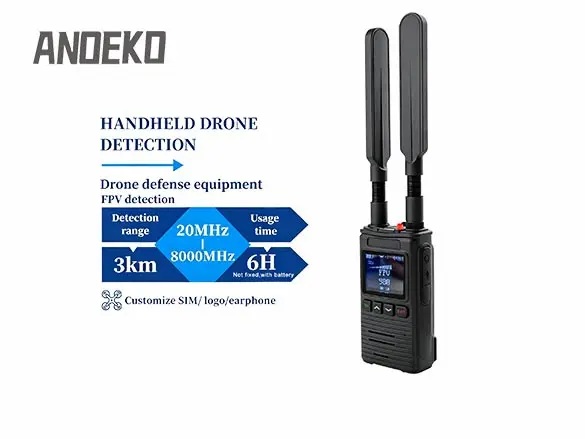

| Detection Frequency Band | 0~8GHz | Full-band drone signal reception | |
| Detection Distance | 3~5km | Effective monitoring range | |
| Dimensions | 5940298mm | Compact handheld size | |
| Built-in Battery | 6000mA/H | Removable high-capacity battery | |
| Charging Interface | TYPE-C | Universal charging port | |
| Power Consumption | 1W | Low power design | |
| Net Weight | 180g | Lightweight for portable use | |
| Battery Life | Approximately 20 hours | Long continuous operation | |
| Working Temperature | -10℃~55℃ | Adaptable to various environments |
