FPV Detector

Passive All-band Briefcase-style Drone Locator | ANOEKO-T5 – High Precision Drone Identification & FPV Detection

ANOEKO-T5 Briefcase-style Drone Locator – a passive all-band drone detection system that identifies DJI, Autel, FPV, and WiFi drones up to 10km. Offers real-time drone/pilot positioning, multi-target tracking, flight replay, and Remote ID (GB 42590-2023, ASTM F3411). No emission, IP65, 19.5kg portable design. Ideal for critical infrastructure, border security, and major events....

Hotline：+86 18948793112

Products

I. Product Overview

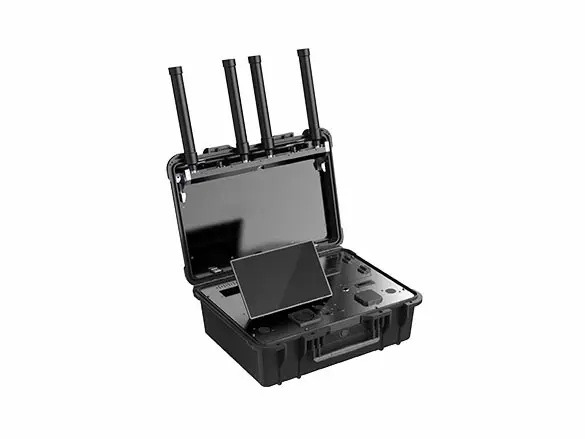

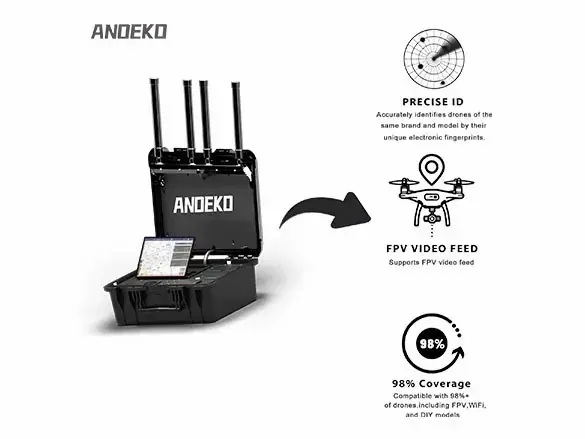

The ANOEKO-T5 Pro is a portable, passive drone detection and positioning system. It enables real-time monitoring of drone parameters – serial numbers, models, coordinates, speed, altitude, flight paths, and pilot positions – via advanced signal analysis and data mining. Enhanced detection for FPV drones and low-frequency band models.

Use cases: Major event security, public safety patrols, counter-terrorism, political core zones, border defense, military restricted areas, power and petrochemical parks. Offline standalone operation, quick deployment, mobile response.

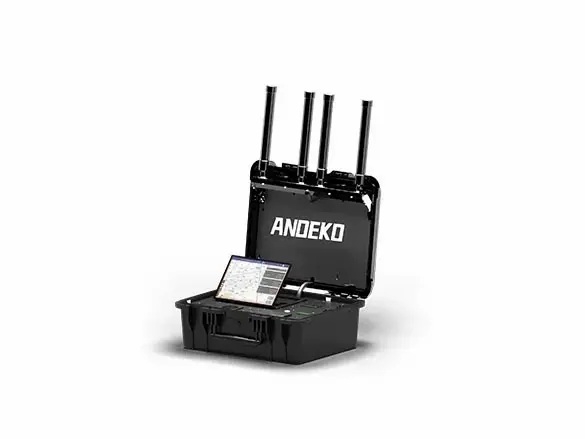

Passive Wireless Drone Detection System.jpg

II.Performance Indicators

Number	Metric	Parameter	Remarks
1	Detectable Drone Types	DJI, Autel Robotics, FIMI, Yuneec, self-built cross drones, WiFi drones and most mainstream drones on the market	-
2	Positionable Drone Types	DJI and other mainstream drone models	-
3	Detected Frequency Band (Hz)	300M~1.5G, 2.4G, 5.2G, 5.8G	Expandable
4	Detection & Positioning Distance	0.5~5km in urban environments; up to 10km in open environments	Varies by environment and drone model
5	Detection Altitude	0m～1000m	-
6	Maximum Simultaneously Detected Targets	≥20 drones	-
7	Maximum Simultaneously Tracked Flight Trajectories	≥5 tracks	-
8	Azimuth Error	≤1.5°（RMS）	-
9	Positioning Accuracy	≤10m	-
10	Detection Success Rate	≥99%	-
11	Full Deployment Time	≤90s (from unfolding to working status)	-
12	Equipment Retraction Time	≤30s	-
13	Identification Response Time	≤5s	-

III.Mechanical Parameters

Number	Metric	Parameter	Remarks
1	Total Weight	~19.5kg	Including batteries
2	Overall Dimension	(520mm415mm224mm)±2mm	Suitcase closed status
