C06A Fixed-Site Drone Detection System — 360° Passive RF UAV Detector | ANOEKO

AOK C06A fixed-site drone detection system provides 5–10 km passive RF detection, unique drone ID tracking, real-time pilot geolocation, 360 full airspace coverage, and seamless C-UAS integration. IP66-rated for 24/7 autonomous operation. Perfect for airports, prisons, and critical infrastructure security....
Hotline:+86 18948793112

Products

? Product Overview

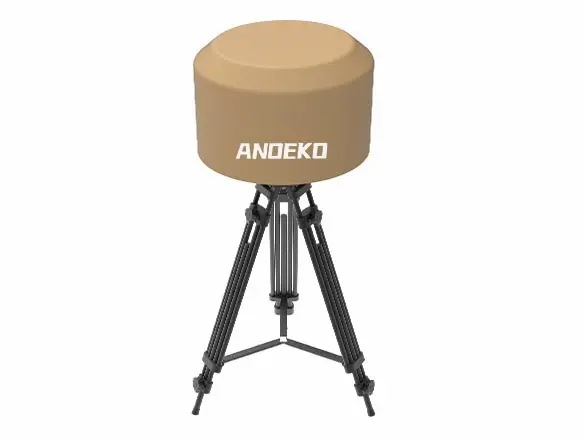

The AOK-C06A Fixed-Site Passive Drone Detection System from ANOEKO is a state-of-the-art passive RF detection solution engineered for persistent 24/7 airspace surveillance. Unlike active radar systems that emit detectable signals, the ALT-C06A operates in pure passive receive mode, making it completely stealth and immune to electronic countermeasures.

Designed for airports, prisons, military installations, stadiums, government facilities, power plants, and other critical infrastructure, the ALT-C06A detects, identifies, and tracks unauthorized drones while maintaining complete radio silence. With 5–10 km detection range, 360° full airspace coverage, and IP66 all-weather protection, this system delivers enterprise-grade security for the most demanding environments.

ANOEKO AOK-C06A Technical Specifications

ItemParameter
Antenna8-element antenna array
Working ModePassive detection, no electromagnetic emission
Main Frequency2.4GHz/5.8GHz/827-872MHz/902-928MHz
Optional:415-460MHz/5.15-5.25GHz
Full Spectrum Range70MHz~6000MHz
Frequency Precision1kHz
Detect Distance5~10km (environment dependent)
Detection Rate≥99%
Capture Time<5s
ID Recognition Time1s
Max Targets≥60 drones
Identifiable Drones≥35 types
Remote ControllerIdentify ≥12 non-DJI controllers
DF Accuracy≤±15°
Vertical Angle≥±90°
Coverage360° full airspace
CompatibilitySupport DJI OcuSync2.0+ parameter display
StructureAll-in-one antenna & host
ExpansionLinkage with jamming, radar, photoelectric equipment
Continuous Work7×24h(168h)
Protection GradeIP66
EMC StandardGB 8702-2014, E-field ≤1.50V/m@0.2m
Working Temp-40℃~+55℃
Storage Temp-25℃~+55℃
Scan ModeFull-band / Channel scanning
Input VoltageAC220V
Power50W
SizeΦ370.6×338mm(standard)
Φ370.6×368mm(with 433MHz option)
Weight≤12kg
Authority3-level user permission management
