ANOEKO 120W GaN Broadband Power Amplifier Module delivers 700-6000MHz coverage with 50dB gain, 27% efficiency, and RS485 monitoring. Ideal for anti-drone systems, RF test platforms, and communication equipment. Factory-direct with customization available.

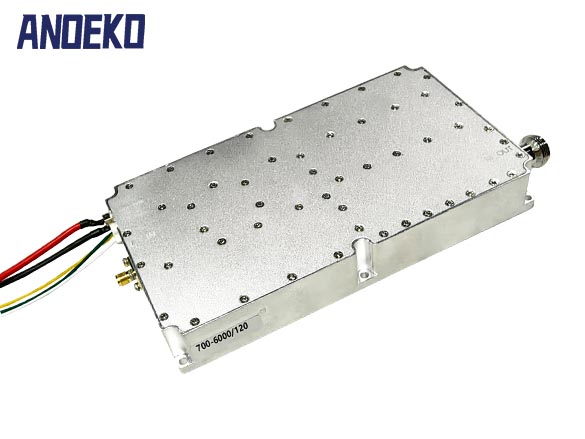

The ANOEKO 120W GaN Broadband Power Amplifier Module is a high-performance wideband RF amplifier engineered for demanding amplification applications across 700–6000MHz. This GAN anti-drone module delivers 120W maximum output power (50.5±0.5 dBm typical @ 13A) with up to 50dB maximum gain and 27% power-added efficiency @ 120W. The module features ≤5dB gain flatness and a standard input power of 2dBm, with maximum non-damaging input power rated at ≤12dBm
Designed as a customized anti-drone module for C-UAS systems, communication equipment, and RF test platforms, the amplifier incorporates intelligent monitoring via RS485 communication protocol, supporting real-time detection of temperature, current, voltage, and RF output power. Built-in over-temperature and VSWR protection ensures reliable operation across the full -10°C to +55°C working temperature range, with power stability of ±1.0dB
The compact 170×94.9×24.5mm form factor features SMA RF input, N-Female RF output, and feedthrough capacitor power supply interface. Whether deployed as a wideband RF module for drone detection systems or as a core high anti-drone module in defense applications, the ANOEKO 120W GaN amplifier delivers reliable, high-gain performance across the full operational spectrum. Support for customized frequency, interface, and structural configurations makes it an ideal choice for system integrators requiring flexible RF amplification solutions.
This customized anti-drone module strictly implements industrial-grade testing standards, all radio frequency indicators verified under full-band sweep test:
| Test Item | Detailed Index | Unit | Practical Application Remark (Anti-Drone Scenario) |
|---|---|---|---|
| Operating Frequency Range | 700–6000 | MHz | Wide Bandwidth Module covering all consumer & industrial UAV frequency bands |
| Rated Working Voltage | 32 | V DC | Standard power supply for high power anti-drone device cabinet |
| Max Continuous Output Power | 50.5 ± 0.5 | dBm | 120W typical power output, core advantage of 100W+ high anti-drone module |
| Amplifier Efficiency @120W CW Output | 27 | % | Optimized LDMOS circuit design, lower heat generation for long-time jamming work |
| Maximum RF Gain | 50 | dB | High-gain RF Amplifier Module, meets weak signal input amplification demand |
| Full-Band Gain Flatness | ≤5 | dB | Stable jamming power across entire 0.7–6GHz bandwidth |
| Standard Input Drive Power | 2 | dBm | Matches common signal source output level for anti-drone systems |
| Maximum Safe Input Power (No Damage) | ≤12 | dBm | Strong input anti-burn protection for field complex working environment |
| Input Port VSWR (Power Off Test) | ≤2 | - | Good impedance matching, reduces signal reflection loss |
| Operating Ambient Temperature | -10 ~ +55 | ℃ | Industrial wide temperature range for outdoor anti-drone deployment |
| Power Stability Over Temperature | ±1.0 @ -40℃~+55℃ | dB | Consistent jamming power in extreme cold & high-temperature sites |
| Rated Continuous Current Draw | ≥18A @ 32V DC | - | Sufficient power reserve for full-power 120W anti-drone operation |
| Communication Control Interface | RS485 Protocol | - | Real-time monitoring of module temperature, working current, supply voltage & RF output power |
| RF Connector Configuration | Input: SMA Female; Output: N Female | - | Standard radio frequency interface for quick assembly of customized anti-drone module |
| Overall Physical Dimension | 17094.924.5 | mm | Ultra-compact aluminum alloy housing, easy to integrate into miniaturized anti-drone equipment |
| Mounting Hole Specification | 89.4*82.2mm spacing, 6×M3 mounting screws | - | Standard installation layout for cabinet & handheld anti-drone device assembly |
| Power Supply Port | Feedthrough Capacitor Interface | - | Anti-interference power input design, avoids RF signal leakage |
Ultra-Wide Bandwidth Coverage: As a premium Wide Bandwidth Module, single unit covers 700MHz to 6GHz, eliminates the need for multi-module combination to jam multi-band drones, greatly reducing system volume and assembly cost.
High Power LDMOS Architecture: Adopts reliable LDMOS anti-drone module core chip, balances output power, efficiency and service life, more cost-effective than GaN modules for medium-large fixed anti-drone projects.
Intelligent RS485 Monitoring Function: Unique digital communication design allows remote real-time data reading, supporting equipment fault early warning, ideal for unattended airport, prison, oil depot anti-drone security projects.
Strong Environmental Adaptability: Passes strict high-low temperature aging test, power fluctuation controlled within ±1dB, stable output in outdoor harsh climate.
Full Customization Support: We provide customized anti-drone module services including power tuning, frequency segment filtering, interface modification and housing size adjustment to match client self-developed jamming equipment.
Rugged Mechanical Structure: CNC integrated aluminum shell with heat dissipation grooves, good heat conduction performance, long-time continuous 120W output without overheating shutdown.
Fixed-site anti-drone jamming stations at airports, military restricted zones, power plants and government venues
Handheld anti-FPV jamming guns, vehicle-mounted UAV countermeasure systems
Laboratory RF signal testing, electromagnetic interference simulation equipment
Security defense customized anti-drone full-band signal shielding systems
All ANOEKO RF Amplifier Module products support pre-samples testing, batch OEM & ODM customized anti-drone module development. Each 120W wideband anti-drone power amplifier undergoes 72-hour full-power aging inspection before delivery, with complete test reports provided. Our engineering team offers technical guidance on circuit matching, heat dissipation design and system integration for anti-drone equipment manufacturers.
