ANOEKO-AOK-Gan-100W Wideband GaN RF Power Amplifier Module

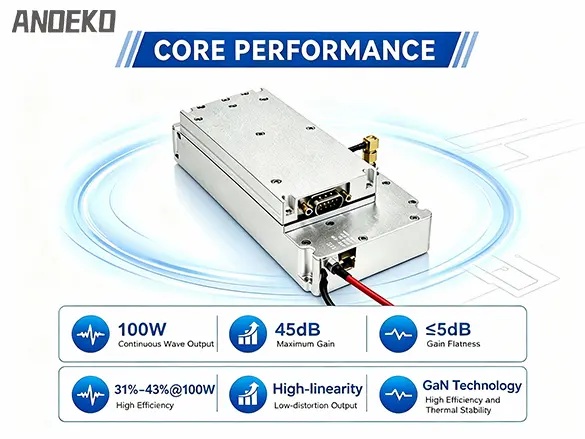

ANOEKO-AOK-Gan-100W is a high-performance wideband GaN RF power amplifier module developed for RF signal amplification, anti-drone countermeasure systems and industrial wireless equipment. Built with gallium nitride semiconductor technology, this 100W RF amplifier delivers stable continuous-wave output, high power efficiency and outstanding thermal stability, which makes it a core component for portable and fixed C-UAS solutions.

The RF amplifier module supports multi-band frequency options covering 300MHz–6000MHz, including 300–1500MHz,1500–2500MHz,2500–4000MHz and 4000–6000MHz. It achieves up to 45dB maximum power gain with gain flatness ≤5dB. The high-linearity design ensures low-distortion RF signal output under long-time continuous operation.

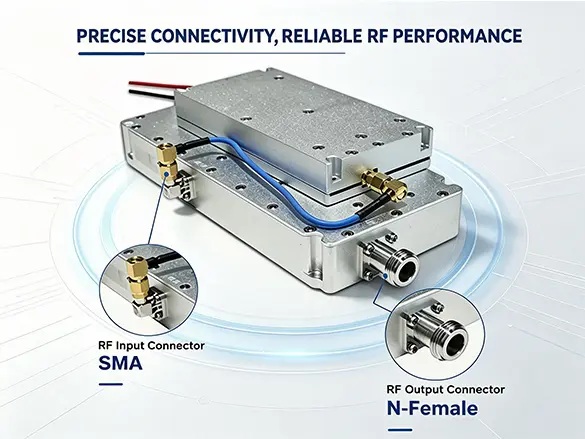

This anti-drone RF module adopts SMA RF input and N-Female RF output interfaces. Digital control interfaces RS485 and TTL are reserved for remote parameter configuration. It supports real-time monitoring of temperature, operating current, voltage and RF output power. Built-in over-temperature and VSWR protection circuits effectively prevent module damage during operation and improve system reliability.

Core Advantages

Main Application Scenarios

• Anti-Drone & C-UAS Countermeasure Systems

• Modular RF System Integration

• Wireless Communication Equipment

• RF Test Platforms & Signal Verification

• Customized RF Jamming Devices

Technical Specifications

ANOEKO supports customized RF amplifier development. We can adjust frequency bands, power parameters, external interfaces and mechanical structure according to client demands. Contact us for technical data and sample solutions for your anti-drone module projects.
