The rapid proliferation of civilian and commercial drones across aerial photography, logistics, security patrols, and infrastructure inspection has created unprecedented low-altitude security challenges. Drone countermeasure technology has evolved accordingly—and at the heart of every effective jamming system lies the RF power amplifier module. This component single-handedly determines interference intensity, effective engagement range, and signal stability under real-world operational conditions.
Consumer and commercial drones typically receive remote control and video transmission signals over the 2.4GHz and 5.8GHz bands, while navigation and positioning rely heavily on GPS (1.5GHz) and GNSS constellations. To effectively disrupt these communication links, the jamming signal generated by the source must be amplified to high power and precisely directed at the target frequency bands. This is precisely where the RF power amplifier module becomes indispensable.
Signal Boosting: Transforms weak signal-source outputs into powerful interference waves capable of overriding drone command links
Extended Engagement Range: Delivers effective jamming radii from 500 meters up to 3 kilometers, depending on output power and antenna configuration
Precision Band Coverage: Targets the specific communication and navigation frequencies used by hostile UAVs
Multi-Band Parallel Transmission: Enables simultaneous jamming across multiple frequency bands, dramatically increasing neutralization probability
Different drone remote control, video transmission and navigation systems operate on distinct frequency spectrums. Below is a reference table of standard bands and corresponding Frequency anti drone module matching schemes:
| Frequency Band | Application Scenario | Matching Module Type |
|---|---|---|
| 900MHz | Industrial remote control, vintage model aircraft | 915–928MHz amplifier unit |
| 1.2GHz | Low-latency FPV video & remote control | 1170–1280MHz amplifier unit |
| 1.5–1.6GHz | GPS / Beidou satellite navigation signals | 1550–1620MHz amplifier unit |
| 2.4GHz | Primary consumer drone RC & video link | 2400–2483MHz amplifier unit |
| 5.2–5.8GHz | High-definition long-range drone downlink | 5150–5850MHz amplifier unit |
A high-efficiency Popular anti drone module must support full multi-band coverage or rapid frequency switching to adapt to mixed UAV intrusion scenarios featuring multiple drone models simultaneously.
| Parameter Item | Standard Typical Value |
|---|---|
| Working Frequency Range | 300MHz – 6GHz full coverage |
| Input Power Supply | 28V / 36V dual voltage options |
| Rated Output Power | 30W / 50W / 100W+ High anti drone module variants |
| Hardware Interface | SMA / N-type RF ports, RS485 intelligent control port |
| Module Core Advantages | Ultra-wide frequency response, high gain, low VSWR, compact footprint |
| Compatible Deployment Platforms | Portable drone jammer guns, vehicle-mounted countermeasure stations, fixed perimeter defense towers |

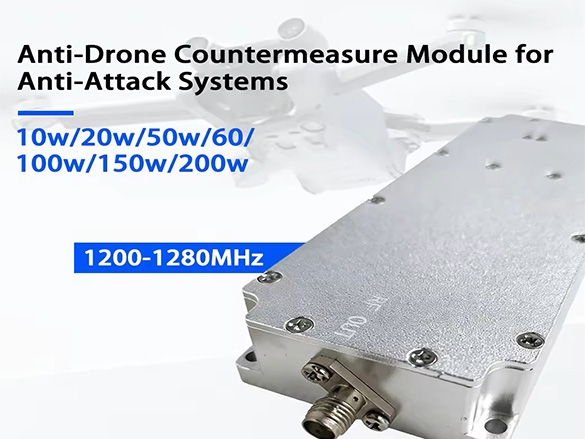

ANOEKO’s amplifier hardware integrates mature LDMOS anti drone module circuit design, delivering consistent power output under continuous long-hour operation, avoiding power attenuation common in low-cost Normal anti drone module products. Clients can also select New anti drone module upgraded versions with enhanced heat dissipation for high-temperature outdoor deployment environments.
Fixed-site installations provide 24/7 drone interdiction capability. Integrated with radar and EO/IR sensors, these systems automatically activate jamming when unauthorized UAVs are detected within protected airspace.
Vehicle-mounted and man-portable systems enable rapid response to emerging drone threats. Multi-band coverage ensures compatibility with diverse drone types encountered in operational theaters.
Power plants, airports, government facilities, and major public events require layered defense. RF power amplifiers interface with detection systems to provide graduated response options—from warning to active denial.
Portable jamming systems equipped with wideband anti-drone module technology can be rapidly deployed to secure temporary perimeters around dignitaries, sporting events, and high-profile gatherings.
Proprietary Technology: In-house designed signal sources and power amplifier modules with full intellectual property control
Complete System Integration: End-to-end module chain support, from signal generation through final amplification
Engineering Expertise: One-on-one technical support with rapid response and fast-turnaround delivery
Proven Performance: Field-tested in military, law enforcement, and critical infrastructure applications worldwide
In the high-stakes domain of drone countermeasures, the RF power amplifier module is not an optional accessory—it is the mission-critical weapon that determines operational success. Whether you are searching for a frequency anti-drone module for a specific band, a wideband anti-drone module for maximum flexibility, or a customized anti-drone module tailored to your exact specifications, ANOEKO delivers trusted, field-proven solutions.
? Proprietary signal source and amplifier module development
? Complete module chain solutions with full customization support
? Dedicated engineering support + rapid delivery
Learn More: Visit www.anoeko.com for product specifications, technical datasheets, and sample request information.
? For technical inquiries or to request a demo unit: Contact ANOEKO's engineering team directly through the website.
