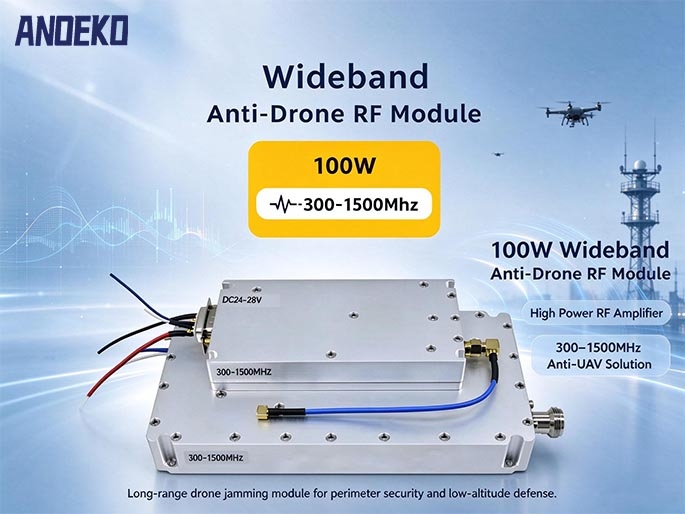

ANOEKO 100W GaN Anti-Drone RF Power Amplifier Module | 300-1500MHz Broadband PA for C-UAS Jamming Systems

I. Product Overview: 100W GaN Power for Demanding Counter-UAS Jamming

The ANOEKO 100W GaN Anti-Drone RF Power Amplifier Module is a high-performance broadband amplification solution engineered for modern counter-UAS jamming systems. Delivering 100W continuous wave (CW) output across an ultra-wide 300–1500MHz frequency range, this module provides system integrators with the power and reliability required for effective drone signal suppression in critical security applications.

Unlike narrowband amplifiers that cover a single drone band, this wide bandwidth module addresses multiple threat frequencies—including 433MHz, 900MHz, 1.2GHz, and 1.4GHz—within a single compact unit. Built on advanced Gallium Nitride (GaN) technology, it achieves 43% power amplifier efficiency and 45dB maximum gain, ensuring stable, long-range signal blocking with minimal power consumption.

As a customized anti-drone module, the 100W GaN PA is designed for seamless integration into vehicle-mounted jamming platforms, fixed-site countermeasure stations, and portable high-power C-UAS systems.

II. Key Features

100W CW GaN Power for Long-Range Jamming
The module delivers 100W continuous wave output, providing the high power density required for long-range drone signal suppression. GaN technology enables efficient thermal management and reliable continuous operation, making this 100W anti-drone module suitable for demanding field environments.

Ultra-Wide 300–1500MHz Frequency Coverage
Covering 300–1500MHz, this RF Amplifier Module addresses the primary remote control and telemetry bands used by commercial and FPV drones. The wide bandwidth eliminates the need for multiple narrowband amplifiers, simplifying system architecture and reducing integration complexity.

High Gain and Consistent Performance
With 45dB maximum gain and ≤5dB gain flatness, the module ensures consistent amplification across the entire frequency band. This GaN anti-drone module maintains stable output power even under varying signal conditions, delivering reliable performance for critical countermeasure operations.

Advanced Communication and Monitoring
The module supports 485 protocol and TTL communication, enabling digital control of frequency band selection and output power adjustment. Integrated temperature, current, and voltage detection provides real-time monitoring for system-level management and fault protection.

Industrial-Grade Design for Harsh Environments
Operating from -10°C to +55°C with power stability of ±1.0dB, the module is engineered for reliable performance in demanding outdoor conditions. The compact 170×77×45mm metal enclosure and 918g weight facilitate integration into space-constrained platforms.

III. Technical Specifications

IV. Applications

• Vehicle-Mounted C-UAS Platforms – High-power jamming for mobile counter-drone operations.

• Fixed-Site Anti-Drone Stations – Continuous-wave suppression for airports, prisons, and critical infrastructure.

• Portable High-Power Jamming Systems – Compact form factor enables integration into man-portable or backpack-style devices.

• Anti-FPV Defense Systems – Effective against FPV racing drones and custom-built UAVs operating in the 300–1500MHz band.

• Customized Countermeasure Projects – 485/TTL control and customizable RF interfaces support tailored system integration.

V. About ANOEKO

ANOEKO specializes in RF power amplifier modules and counter-drone systems, with over 13 years of expertise in signal jamming and low-altitude security. The company delivers RF Amplifier Modules from 5W to 200W across 100MHz–6GHz, serving system integrators and defense contractors worldwide.

For the latest datasheet, customization options, and quotation, contact ANOEKO with your application requirements.

Technical information is based on specification version 20260913-V1.0. Final specifications should be confirmed for the supplied version.
