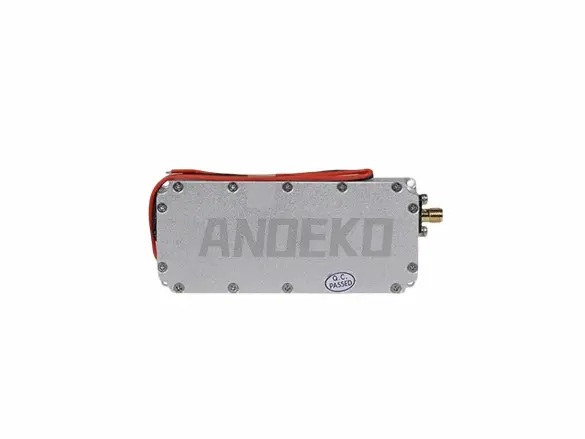

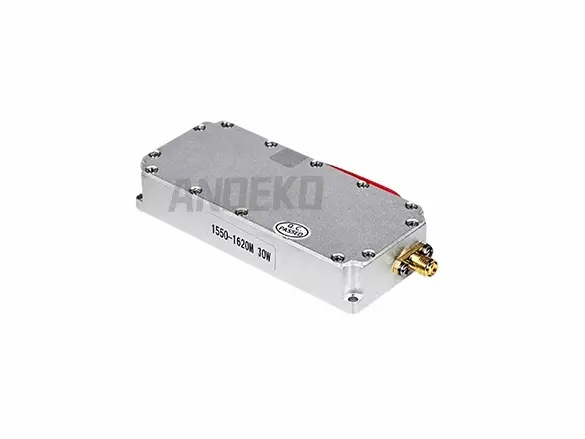

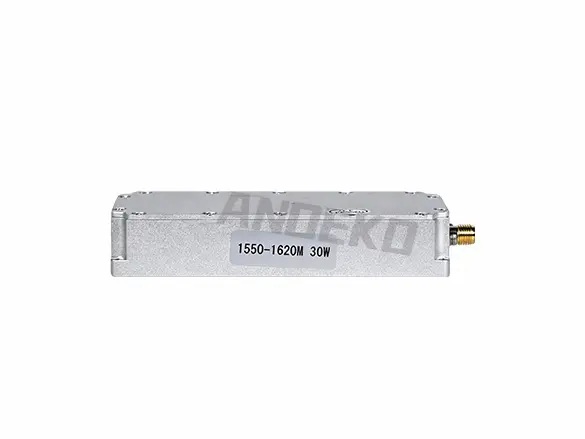

30W GaN 1550-1620MHz Technical Specifications
| Test Item | Core Metric | Unit | Key Features |
|---|---|---|---|
| Multi-Band Frequency Range | 5725-5850/5150-5350/2400-2500/1550-1620/1180-1280/840-930/420-450 | MHz | ANOEKO cell phone signal booster supports full multi-band frequency coverage with an efficient sweep source; customizable frequency band available for tailored cellular signal boost needs |
| Standard Working Voltage | 28 | V | Industry-standard 28V operating voltage for ANOEKO RF power amplifier, ensuring stable power supply for consistent long-term signal amplification performance |
| High Signal Gain | 38-40 | dB | ANOEKO cellular signal booster delivers 38-40dB high gain, effectively amplifying weak 2G/3G/4G/5G cellular signals for improved indoor/outdoor coverage and call quality |
| Maximum High Output Power | 45±0.5 | dBm | High 45dBm output power from ANOEKO signal repeater, supporting 2.4A/2.1A current for strong, long-range cellular signal transmission and extended coverage |
| Output Port SWR (Voltage Standing Wave Ratio) | ≤1.30 | / | ANOEKO RF amplifier features ultra-low ≤1.30 SWR at the output port, tested under no power supply with grid point test for optimal impedance matching and maximum signal transfer efficiency |
| Extreme Operating Temperature Range | -40~+55 | °C | ANOEKO signal booster operates reliably in harsh temperatures from -40°C to +55°C, suitable for both indoor home/office and outdoor industrial signal boost applications |
| Power Stability | 1.0 | dB | ANOEKO signal amplifier maintains exceptional ±1.0dB power stability across all operating frequencies, ensuring consistent signal amplification performance without fluctuation or signal loss |
| Power Supply Current Requirements | ≥4A | / | ANOEKO high power signal booster requires a minimum 4A power supply, supporting 30W CW output for continuous, high-performance cellular signal amplification in large coverage areas |
| Power Supply Interface | Perform capacitive | / | ANOEKO signal repeater comes with a professional capacitive power supply interface; optional red and black line configuration available for flexible and easy installation |
| Enable Control Function | Have a choice | / | ANOEKO RF power amplifier offers optional enable control with high open and low closed logic, for easy on/off management of the entire signal boost system |
| RF Input/Output Connector Type | SMA | / | ANOEKO cell phone signal amplifier uses standard SMA mother head connectors for RF input and output, ensuring wide compatibility with common antenna and signal cable setups |
| Compact Product Dimensions | 1123819.5 | mm | Ultra-compact size of 1123819.5mm for ANOEKO mini signal booster, excluding SMA heads, perfect for space-constrained installation scenarios |
| Mounting Hole Specifications | 107.9*33.6 | mm | ANOEKO signal amplifier features 107.933.6mm mounting holes with M 2.510 specifications, for easy and secure wall or surface mounting in any installation environment |
| Lightweight Product Weight | 0.2 | Kg | Lightweight 0.2Kg design for ANOEKO portable cell phone signal booster, easy to carry and install for both fixed and mobile signal boost needs |
