Technical Specifications
| Parameter Name | Technical Specifications | Remarks |
|---|---|---|
| Frequency Range (700-6000MHz Wideband Operation) | 700-6000 MHz | Covers 700MHz to 6GHz full frequency bands, compatible with anti-drone, radar, multi-band communication RF systems |
| Operating Voltage (32V DC Nominal) | 32 V | 28-32 V DC wide operating voltage range, flexible for various industrial power supply scenarios |
| Max Output Power (80W Continuous Wave) | 80 W | 80W@9A Typical Value, high-power stable RF output for demanding defense and industrial applications |
| Amplifier Power Efficiency | 27 % | @80W rated output power, high-efficiency GaN semiconductor design for reduced power consumption and heat generation |
| Maximum Power Gain | 45 dB | Max power gain across the entire frequency band, delivers strong signal amplification for weak RF input signals |
| Gain Flatness | ≤5 dB | Consistent gain performance across 700-6000MHz wide frequency range, ensures stable signal transmission without distortion |
| Standard Input Power | 7 dBm | Nominal input power level for optimal amplifier linearity and performance |
| Maximum Undamaged Input Power | ≤10 dBm | Withstands up to 10 dBm input power without permanent device damage, high input overload protection |
| Input Voltage Standing Wave Ratio (VSWR) | ≤2 | No power, network score test, excellent input impedance matching for stable and reliable RF operation |
| Operating Temperature Range | -10 ~+55 °C | Wide operating temperature range, adapts to harsh industrial and outdoor environmental conditions |
| Power Stability Over Temperature | +1.0@-40°C ~ +55°C dB | Minimal power gain variation across extreme temperature ranges, ensures consistent performance in temperature-fluctuating scenarios |
| Power Supply Requirements | ≥12A@+32VDC | Continuous wave output support, stable power supply specification for long-term high-power operation |

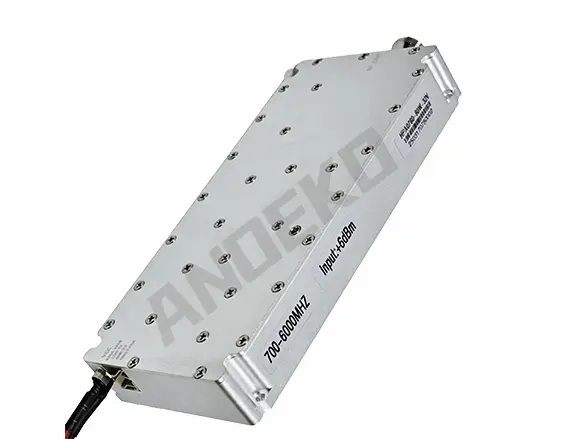

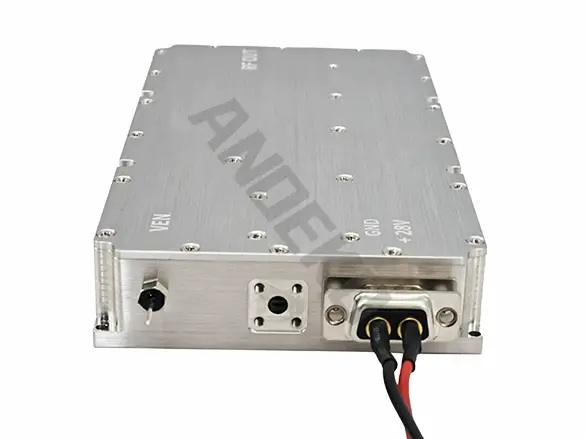

| Power Supply Interface | through-center | Through-center power supply interface, easy for quick integration and wiring in RF system assembly |
| Control & Communication Interface | 485 communication protocol; TTL communication | Supports temperature, current, voltage, RF output power detection; 2.54mm 2*4 pin seats, TTL communication for digital source frequency band and output power control |

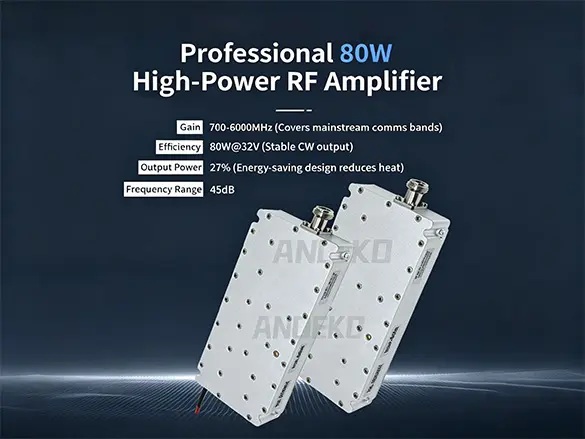

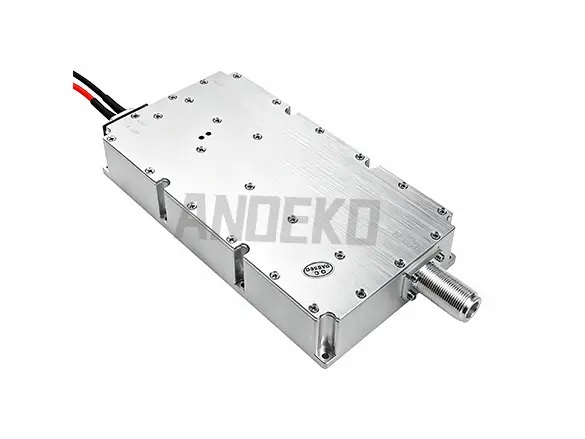

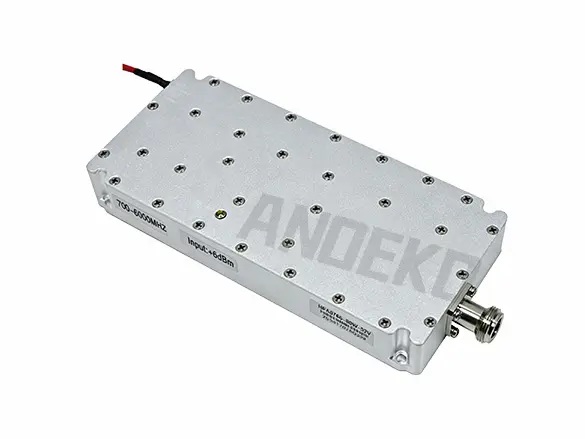

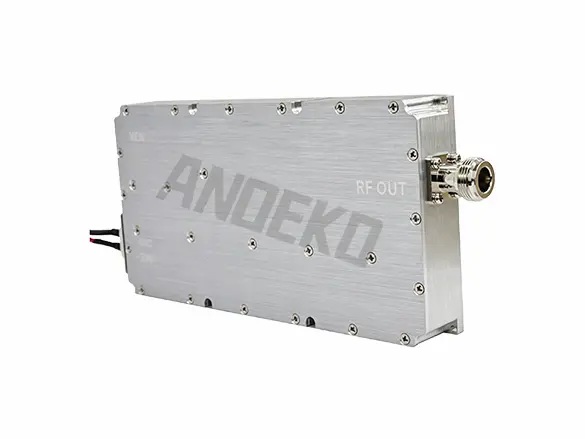

| RF Input & Output Connectors | Input SMB-JE, Output N Female | Standard industrial RF connectors, seamless compatibility with existing RF test and communication systems |
| Module Dimensions | 1707724.5 mm | Compact form factor, perfect for space-constrained RF system installations and portable devices |
| Module Weight | 750 g | Lightweight design, suitable for airborne, portable and mobile anti-drone/radar RF applications |
| Mounting Hole Specifications | 152.3*71.5 mm | M3.0*4 thread size, for secure and convenient mounting in various equipment chassis |
