ANOEKO AOK-30W 300-6300MHz GaN RF Power Amplifier Module | 30W Broadband Anti-Drone PA for C-UAS Integration

I. Product Overview: Broadband GaN Amplification for Modern Counter-UAS Systems

The ANOEKO AOK-30W is a compact, metal-enclosed RF power amplifier module engineered for industrial system integration in counter-drone and broadband RF applications. Delivering a typical output power of 30W with peak capability up to 50W across an ultra-wide 300–6300MHz frequency range, this GaN-based module provides system integrators with a versatile amplification solution for drone jamming, signal suppression, and RF testing platforms.

As a customized anti-drone module, the AOK-30W balances high performance with practical field requirements. Its lightweight 360g construction and compact 130×62.9×24.5mm footprint make it suitable for integration into portable counter-UAS devices, vehicle-mounted jamming systems, and fixed-site RF platforms where space and weight are at a premium.

II. Key Features

Ultra-Wide Frequency Coverage (300–6300MHz)
The AOK-30W covers the full spectrum from 300MHz to 6300MHz, encompassing all major drone communication and navigation bands including 433MHz, 900MHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.2GHz, and 5.8GHz. This wide bandwidth module design eliminates the need for multiple narrowband amplifiers, simplifying system architecture and reducing integration complexity.

GaN Technology for High Efficiency
Built on Gallium Nitride (GaN) semiconductor technology, this GaN anti-drone module delivers superior power density and thermal performance compared to traditional silicon-based designs. The GaN architecture enables reliable, continuous-wave operation at 30W output with 25% typical efficiency, ensuring stable performance in demanding counter-UAS environments.

High Gain and Flexible System Integration

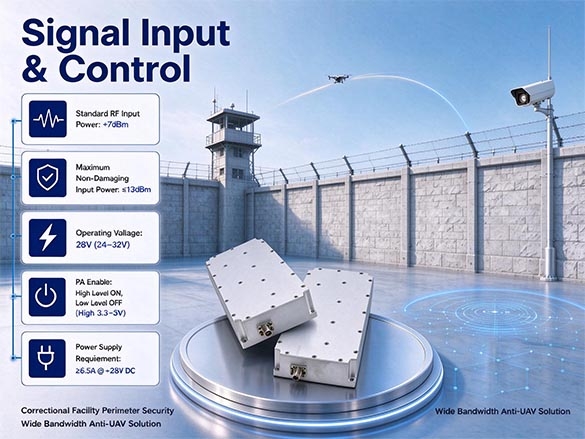

With a maximum power gain of 38dB and small-signal gain of 45–50dB, the AOK-30W provides ample amplification for system-level integration. The module supports PA enable signal control (high-level ON / low-level OFF) for hardware-level management, enabling remote power management and system-level automation.

Compact Metal Enclosure with Bottom-Based Heat Dissipation

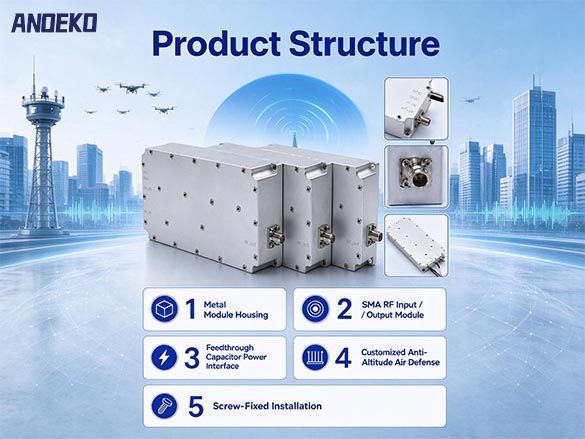

The AOK-30W is housed in a rugged metal enclosure measuring 130×62.9×24.5mm and weighing just 360g. Thermal dissipation is achieved through the module bottom base, requiring either forced-air cooling or a conductive heat sink for stable long-duration operation. Pre-reserved mounting holes (M3.0×4 steel screws) support screw-fixed assembly in system chassis.

Customizable RF Interfaces
Standard RF input and output ports use SMA-Female connectors. Custom RF interfaces are available for project-specific demands, allowing system integrators to adapt the module to their specific mechanical and electrical requirements. This flexibility makes the AOK-30W a practical choice for customized anti-drone module projects.

III. Technical Specifications

IV. Applications: From Counter-UAS to Broadband RF Systems

The AOK-30W is designed for system integrators building counter drone detection and jamming platforms. Its 300–6300MHz coverage makes it suitable for:

• Portable Anti-Drone Jamming Systems – Compact size and 360g weight enable integration into handheld or man-portable counter-UAS devices.

• Vehicle-Mounted C-UAS Platforms – Robust metal enclosure and wide temperature range support mobile operations.

• Fixed-Site RF Suppression Systems – Continuous-wave 30W output provides reliable jamming capability for critical infrastructure protection.

• RF Test and Measurement – Broadband amplification for laboratory and field testing of RF systems.

• Customized Anti-Drone Module Projects – SMA-Female connectors and customizable RF interfaces support tailored integration.

V. About ANOEKO: Your Partner in Counter-UAS RF Technology

ANOEKO is a Shenzhen-based manufacturer specializing in RF power amplifier modules and counter-drone systems. With over 13 years of expertise in signal jamming and low-altitude security, ANOEKO delivers RF Amplifier Modules ranging from 5W to 200W across 100MHz–6GHz, serving system integrators, defense contractors, and security equipment manufacturers worldwide.

For the latest datasheet, customization options, and quotation, contact ANOEKO with your application requirements.

Technical information is based on specification version 20260913-V1.0. Final specifications and available functions should be confirmed for the supplied version.
