ANOEKO 100W GaN RF Amplifier Module | 300-2500MHz Broadband Power for Advanced Anti-Drone Systems

Product Introduction

The ANOEKO 100W GaN RF Amplifier Module is engineered for professionals demanding peak performance in anti-drone and RF test environments. Offering a wide frequency range from 300MHz to 2500MHz, this GaN anti-drone module delivers exceptional efficiency and stable linear output, making it the ideal replacement for traditional LDMOS-based amplification platforms.

Key Technical Advantages

• Advanced GaN Chip Core
  Unlike conventional LDMOS modules, this GaN-based amplifier provides superior heat resistance, higher breakdown voltage, and greater overall efficiency. The result is reliable high-power transmission even under challenging operational conditions.

• Broadband Coverage & Flexible Power
  Designed for versatility, it maintains continuous frequency coverage across 300-2500MHz. The output power is fully adjustable between 90-150W (typical 100W), providing consistent power levels for both wideband jamming and targeted interference applications.

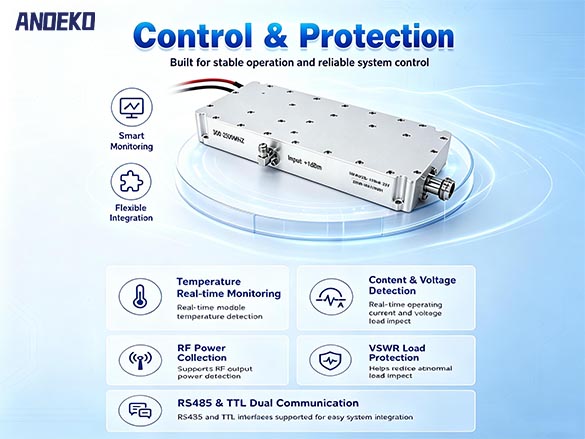

• Integrated Real-Time Monitoring
  Equipped with dual communication interfaces (RS485 + TTL), the module allows users to monitor vital parameters—including voltage, current, temperature, and RF output power—in real time, ensuring optimal system performance and proactive maintenance.

• Intelligent Protection & Stability
  Built-in over-temperature protection and VSWR mismatch safeguards prevent damage under high-load scenarios, enhancing the module’s operational lifespan and ensuring low distortion, high-linearity RF output.

Technical Specifications

Applications & Customization

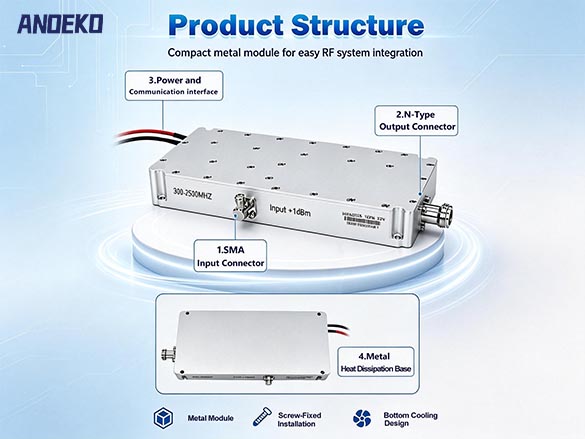

As a highly capable wide bandwidth module, it is perfectly suited for integration into advanced counter-UAS platforms, military-grade signal jammers, and professional RF laboratory testing systems. ANOEKO provides a customized anti-drone module service, allowing for adjustments in connector types (SMA/N) and mechanical dimensions to fit specific deployment requirements.

With its combination of cutting-edge GaN technology, real-time control, and robust protection features, the ANOEKO 100W module stands as a definitive high anti-drone module solution for mission-critical operations.
