ANOEKO 2500-4000MHz 100W GaN RF Power Amplifier Module | High Anti-Drone Module with Built-in Signal Source

Product Introduction

The ANOEKO 100W GaN RF Power Amplifier Module operates across the 2500–4000MHz frequency range and incorporates a built-in signal source. Designed for RF system integration, it provides a compact amplification solution with RS485/TTL control interfaces. Review the technical specifications, including output power, gain, efficiency, supply requirements and operating temperature, to determine whether this model meets your system requirements.

Key Specifications

• Frequency range: 2500–4000MHz

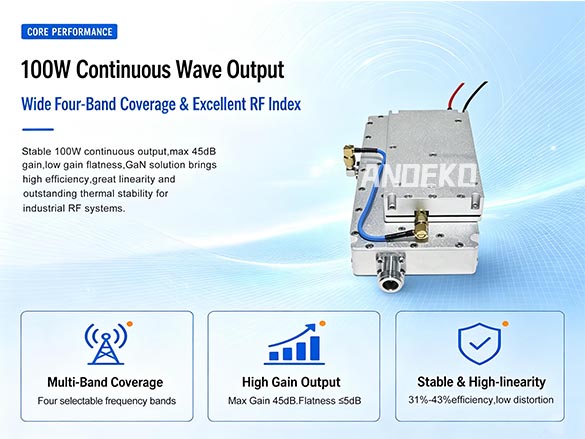

• Rated output power: 100W

• Maximum gain: 45dB

• Gain flatness: ≤5dB

• Built-in signal source: Confirmed on the current product page

• Control interfaces: RS485 / TTL

Refer to the full technical table for operating voltage, current, thermal conditions and other integration requirements.

Key Technical Features

Built-in Signal Source & Smart Control

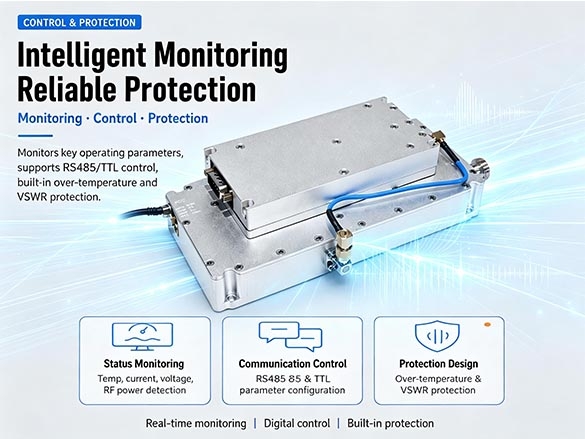

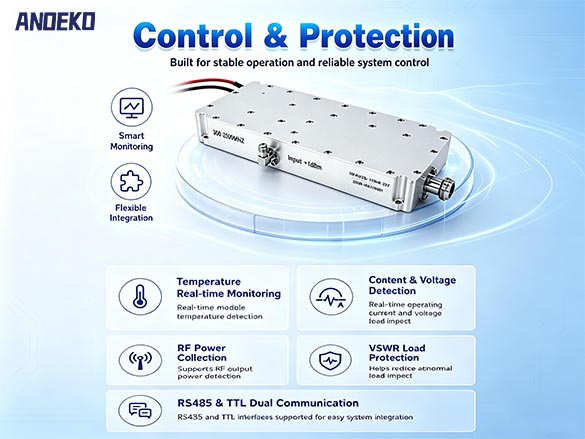

This module incorporates a built-in signal source, eliminating the need for external signal generators and simplifying system integration for portable and fixed anti-drone platforms. The 485 communication protocol interface supports real-time monitoring of voltage, current, temperature, and radio frequency output power. Additionally, TTL communication enables direct communication with digital sources, allowing users to set frequency bands and output power seamlessly.

Reliability & Protection

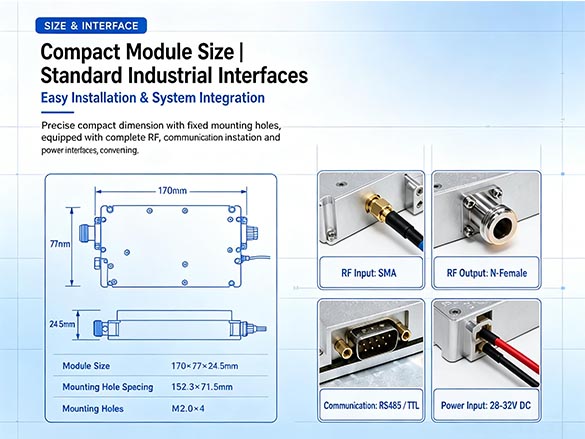

Engineered for harsh field conditions, the module operates within a wide -10℃ to +55℃ temperature range and features built-in high and low temperature testing. The compact metal housing (170*77*45mm) ensures durability while maintaining a lightweight profile of 918g.

Applications
An ideal GaN anti-drone module for FPV/DJI drone jamming systems, this 100W amplifier is fully customizable to meet specific frequency and power requirements of modern counter-UAS operations.
